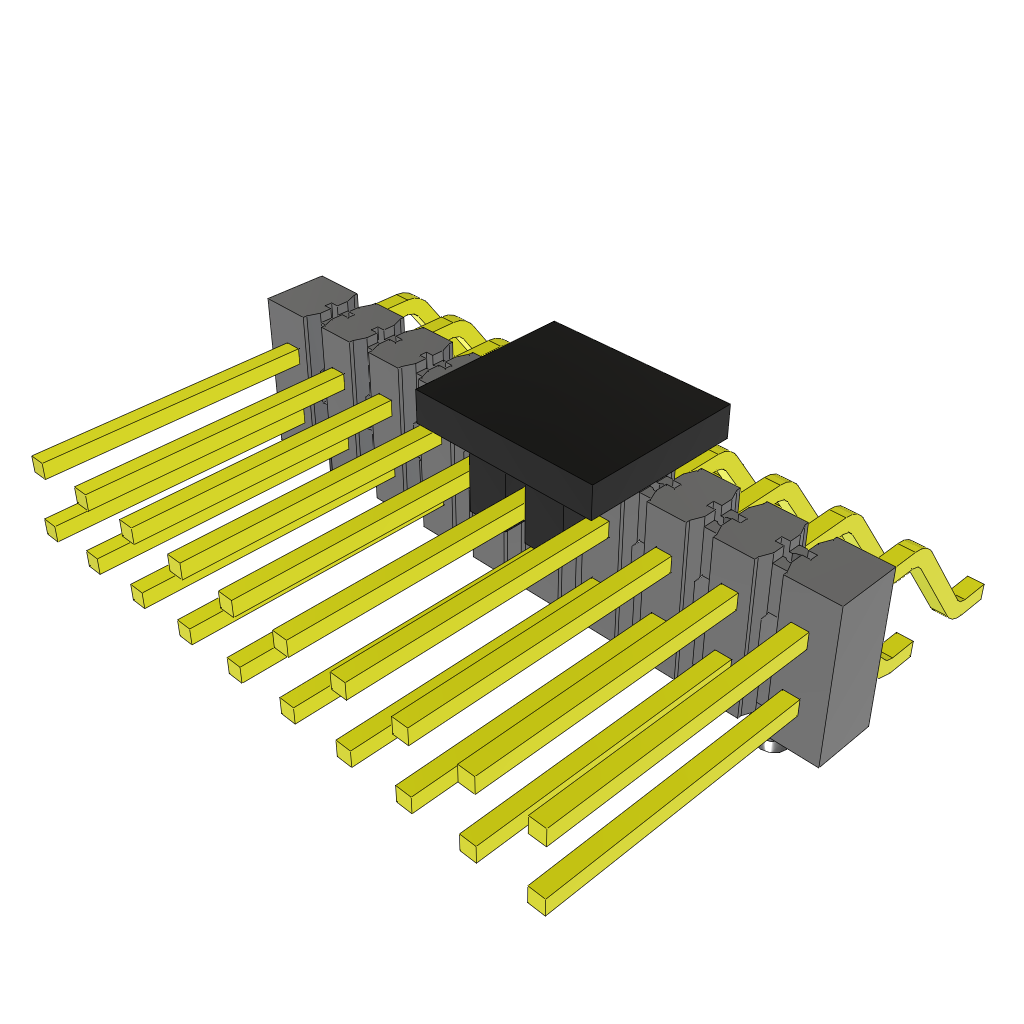

TSM-110-03-L-DH-A-P The N-A TSM-110-03-L-DH-A-P is a .100" surface mount terminal strip header. It features a 2.54mm pitch and supports up to 8 Gbps performance.
Mfr Part #:

TSM-110-03-L-DH-A-P

Available from 1 distributors
Mfr Name: N-A
N-A
The N-A TSM-110-03-L-DH-A-P is a .100" surface mount terminal strip header. It features a 2.54mm pitch and supports up to 8 Gbps performance.
✓ Total Stock: 144 pcs

TSM-110-03-L-DH-A-P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
144 pcs
On Request
144 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-110-03-L-DH-A-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Mating Cycles
Mounting Type
Pitch
SVHC Present
Tape & Reel
Termination Style
View Similar Products (0)

TSM-110-03-L-DH-A-P Description

Short technical summary and product information.

This surface mount terminal strip header, part number TSM-110-03-L-DH-A-P from N-A, offers a .100" (2.54 mm) pitch and a .025" (0.635 mm) square post contact system. Designed for surface mount applications, it provides vertical or horizontal orientation options.



This Extended Life Product™ is qualified for Severe Environment Testing (SET) and meets or exceeds MIL-DTL-55302 testing. It supports high mating cycles, ranging from 250 to 2,500, and offers performance up to 8 Gbps. The terminal strip is suitable for various applications requiring reliable connections in demanding environments.



Available in single, double, and triple row configurations, this header is designed to mate with Samtec sockets. Its mixed technology pins and automotive A-Series options facilitate processing and integration into specific designs. Please confirm configuration with the Series Print before final design.

TSM-110-03-L-DH-A-P Quick Information

Product Type: Terminal Strip Header
Series: TSM
Canonical Name: .100" Surface Mount Terminal Strip
Subcategory: Header

TSM-110-03-L-DH-A-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TSM-110-03-L-DH-A-P Features

  • .100" pitch surface mount terminal strip.
  • Supports up to 8 Gbps performance.
  • High mating cycle capability (250-2,500).
  • Meets or exceeds MIL-DTL-55302.
  • Extended Life Product™ (ELP).

TSM-110-03-L-DH-A-P Applications

  • Suitable for high-speed board-to-board connections.
  • Ideal for demanding environmental applications.
  • Used in systems requiring high mating cycles.
  • Designed for surface mount processing.

TSM-110-03-L-DH-A-P FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

2.54 mm.

What is the mounting type?

Surface mount.

How many mating cycles does it support?

250 to 2,500 cycles.

What is the data rate performance?

Up to 8 Gbps.

What is the contact system?

0.635 mm square post.

What packaging options are available?

Tube packaging only; tape and reel is not available.
