Mfr Part #:

TSM-110-03-L-DH

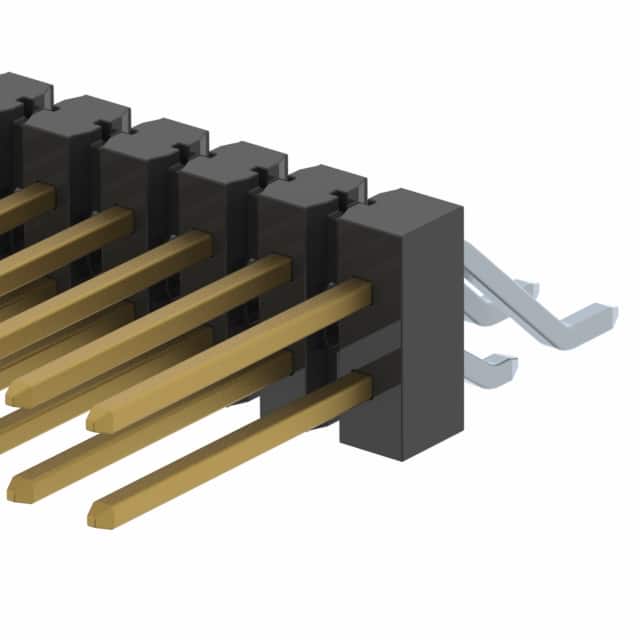

Samtec TSM-110-03-L-DH is a 20-position, 2-row, 2.54mm pitch surface mount right angle header with male pins. It features phosphor bronze contacts with gold plating and black LCP insulation.

✓ Total Stock: 122 pcs

$ Price Range: $1.75 - $3.47

TSM-110-03-L-DH Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	122 pcs On Request	122 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSM-110-03-L-DH Description

Short technical summary and product information.

The Samtec TSM-110-03-L-DH is a 20-position, 2-row rectangular connector header featuring male pins with a 2.54mm pitch. Designed for surface mount right angle installation, this unshrouded header is suitable for board-to-board or cable applications.

Constructed with phosphor bronze contacts plated with gold on the post and matte tin on the tail, housed in a black liquid crystal polymer (LCP) insulator rated UL94 V-0. It has a contact post height of 10.67mm and an insulation height of 6.10mm. The operating temperature range is -55°C to 125°C, and it is rated for 4.7A per pin typical when mated with SSW series.

Lead-free solderable with MSL Level 1 (unlimited). Push-pull fastening type. Typical applications include industrial, automotive, and computing equipment requiring reliable high-density interconnects.

TSM-110-03-L-DH Quick Information

Product Type: Rectangular Connector Header, Male Pins

Series: TSM

Canonical Name: Connector Header, Male Pins, 20 Position, 2 Row, 2.54mm Pitch, Surface Mount, Right Angle

Subcategory: Surface Mount Right Angle Header

TSM-110-03-L-DH Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free Solderable

TSM-110-03-L-DH Estimated Pricing

Qty	Low	High
1+	$3.47	$3.47
44+	$2.95	$2.95
110+	$2.76	$2.76
506+	$2.26	$2.26
1,012+	$2.13	$2.13
2,002+	$1.85	$1.85
5,016+	$1.75	$1.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-110-03-L-DH Features

20 positions in 2 rows with 2.54mm pitch.
Surface mount right angle for compact design.
Gold plated phosphor bronze contacts.
Rated for 4.7A per pin typical.
UL94 V-0 rated LCP insulator.

TSM-110-03-L-DH Applications

Ideal for board-to-board interconnects.
Used in industrial control modules.
Suitable for high-density computing systems.
Applicable in automotive electronics.

TSM-110-03-L-DH FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSM-110-03-L-DH have?

20 positions.

What is the pitch of the TSM-110-03-L-DH?

2.54mm (0.100").

What is the current rating of the TSM-110-03-L-DH?

4.7A per pin typical when mated with SSW series.

What mounting type does the TSM-110-03-L-DH use?

Surface Mount, Right Angle.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish on the TSM-110-03-L-DH?

Gold on post, Matte Tin on tail.

What is the flammability rating of the insulator?

UL94 V-0.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold on post, Matte Tin on tail
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	10.67mm (0.420")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	4.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.10mm (0.240")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	2.54mm (0.100")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
