Mfr Part #:

TSM-110-01-T-DV-P

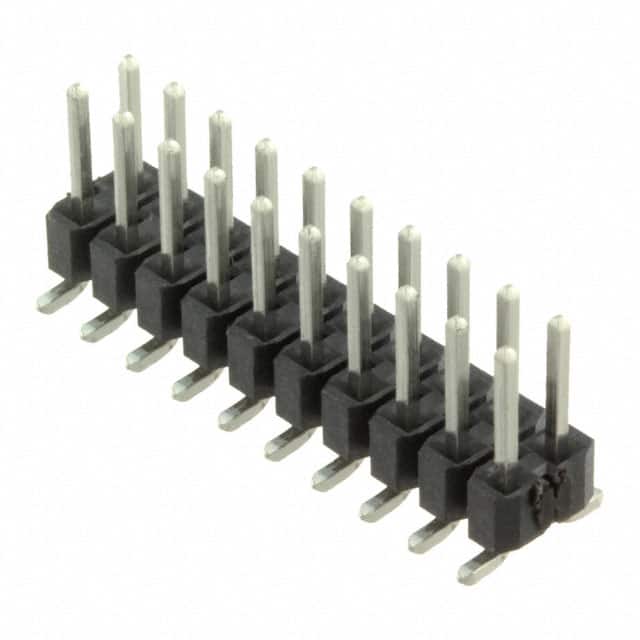

Samtec TSM-110-01-T-DV-P is a 20 position, 2 row, 2.54mm pitch surface mount male pin header. It features tin plated phosphor bronze contacts and a black LCP insulator.

✓ Total Stock: 500 pcs

$ Price Range: $0.71 - $1.96

TSM-110-01-T-DV-P Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
OTL Components ✓ Non-Authorised Inventory information	500 pcs On Request	500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSM-110-01-T-DV-P Description

Short technical summary and product information.

The Samtec TSM-110-01-T-DV-P is a 20 position, 2 row, unshrouded male pin header from the TSM series. It features a 2.54mm pitch and row spacing, making it suitable for board-to-board or cable-to-board applications. The connector uses surface mount solder termination and has a push-pull fastening type.

The contacts are made of phosphor bronze with a tin finish, and the insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The post height is 5.84mm and the insulation height is 2.54mm. This part is designed for pick and place assembly and is lead-free solderable.

The TSM-110-01-T-DV-P has an operating temperature range of -55°C to +105°C. It is designed to mate with Samtec socket strips such as the SSW, SSQ, SSM, and BCS series, as well as cable mates like IDSS and IDSD.

TSM-110-01-T-DV-P Quick Information

Product Type: Header, Male Pins

Series: TSM

Canonical Name: Samtec TSM Series 20 Position 2 Row 2.54mm Pitch Surface Mount Male Pin Header

Subcategory: Unshrouded Header

TSM-110-01-T-DV-P Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TSM-110-01-T-DV-P Estimated Pricing

Qty	Low	High
1+	$1.96	$1.96
44+	$1.91	$1.91
110+	$1.65	$1.65
506+	$1.45	$1.45
1,012+	$1.12	$1.12
2,002+	$0.96	$0.96
5,016+	$0.85	$0.85
10,010+	$0.71	$0.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-110-01-T-DV-P Features

20 position 2 row 2.54mm pitch header.
Surface mount solder termination.
Tin plated phosphor bronze contacts.
Black LCP insulator UL94 V-0 rated.
Operating temperature -55°C to +105°C.

TSM-110-01-T-DV-P Applications

Board-to-board and cable-to-board connections.
Pick and place automated assembly.
General purpose rectangular connector applications.

TSM-110-01-T-DV-P FAQs

6 frequently asked questions generated from this part’s specifications.

How many positions does the TSM-110-01-T-DV-P have?

The TSM-110-01-T-DV-P has 20 positions arranged in 2 rows.

What is the pitch of the TSM-110-01-T-DV-P?

The pitch is 2.54mm (0.100").

What is the mounting type for this header?

This header uses surface mount (SMD) termination.

What is the operating temperature range?

The operating temperature range is -55°C to +105°C.

What is the contact material and finish?

The contacts are made of phosphor bronze with a tin finish.

What is the insulator material and flammability rating?

The insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	5.84mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	2.54mm
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Style	-01
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	2.54mm
Row Spacing	2.54mm
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
