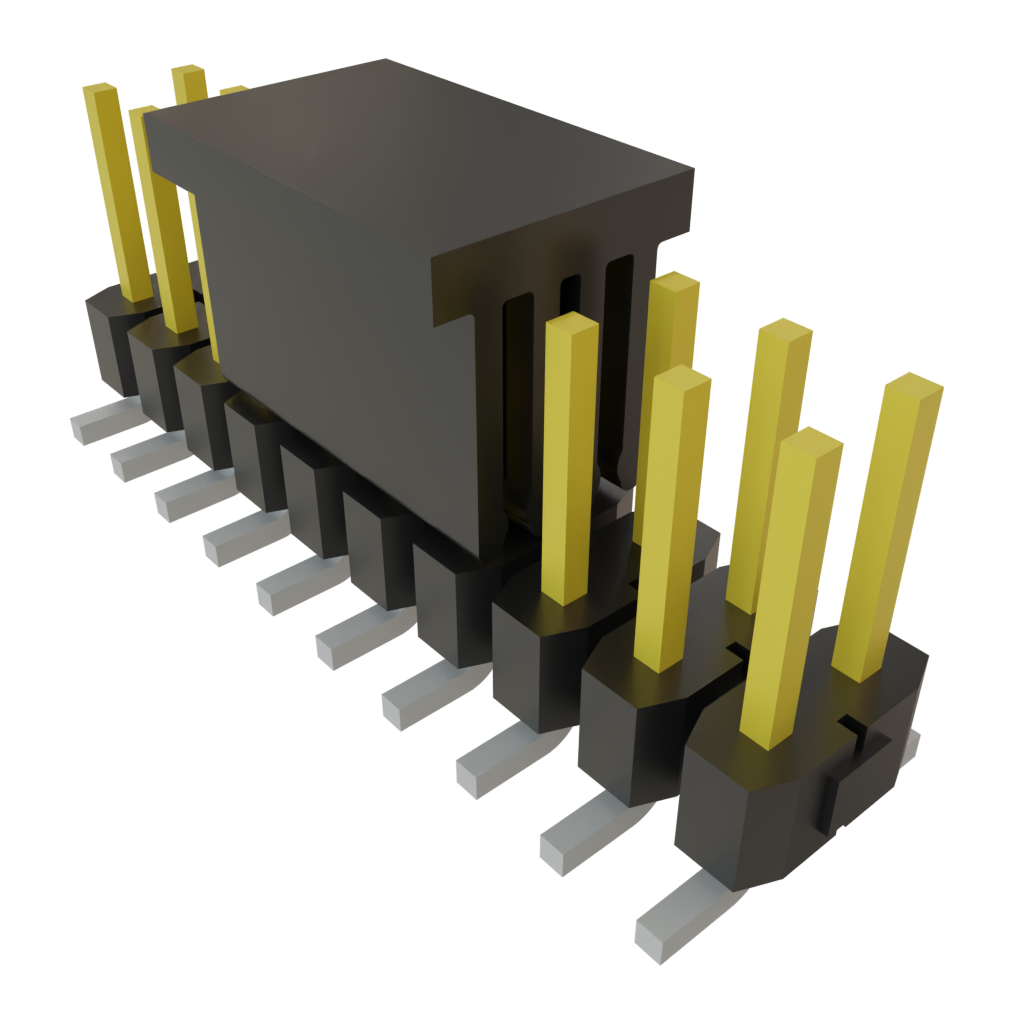

TSM-110-01-L-DV-P-TR The SMT TSM-110-01-L-DV-P-TR is a 20-pin, 2-row strip header with a 2.54mm pitch. It offers surface mount termination and supports up to 8 Gbps performance.
Mfr Part #:

TSM-110-01-L-DV-P-TR

Available from 1 distributors
Mfr Name: SMT
SMT
The SMT TSM-110-01-L-DV-P-TR is a 20-pin, 2-row strip header with a 2.54mm pitch. It offers surface mount termination and supports up to 8 Gbps performance.
✓ Total Stock: 115 pcs

TSM-110-01-L-DV-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
115 pcs
On Request
115 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-110-01-L-DV-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mating Cycles
Orientation
Pitch
SVHC Present
Tape & Reel
Termination
View Similar Products (0)

TSM-110-01-L-DV-P-TR Description

Short technical summary and product information.

The SMT TSM-110-01-L-DV-P-TR is a surface mount strip header designed for high-density applications. It features a 0.100 inch (2.54 mm) pitch and a vertical orientation, making it suitable for various board-to-board connections.



This header supports high-speed data transfer, with performance up to 8 Gbps. The contact system utilizes a 0.025 inch square post. Termination is via surface mount technology, with options for mixed technology pins to facilitate processing. The product is also an Extended Life Product, designed for high mating cycles (up to 2,500) and passing 10-year Mixed Flowing Gas (MFG) testing.



It is supplied in Tape & Reel packaging with a standard quantity of 150 parts per package. The TSM series is designed to meet or exceed MIL-DTL-55302 testing standards, indicating its suitability for demanding environments.

TSM-110-01-L-DV-P-TR Quick Information

Product Type: Strip Header
Series: TSM
Canonical Name: SMT TSM-110-01-L-DV-P-TR .100in/2.54mm SMT Strip Header, 20 Pin, 2 Row, Vertical, 10µin Gold/Tin, .230in Post, PnP Pad, Tape & Reel
Subcategory: Strip Header

TSM-110-01-L-DV-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TSM-110-01-L-DV-P-TR Features

  • 2.54mm pitch strip header.
  • Vertical orientation, surface mount termination.
  • Supports up to 8 Gbps performance.
  • High mating cycle rating up to 2,500.
  • Extended Life Product, MFG tested.

TSM-110-01-L-DV-P-TR Applications

  • Suitable for board-to-board connections.
  • Designed for high-density arrays.
  • Used in applications requiring high-speed data.
  • Meets MIL-DTL-55302 testing.

TSM-110-01-L-DV-P-TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSM-110-01-L-DV-P-TR?

2.54 mm

What is the contact system?

0.635 mm square post

What is the orientation?

Vertical

What type of termination does this header use?

Surface mount

What is the maximum performance of this header?

Up to 8 Gbps

How many mating cycles is the TSM-110-01-L-DV-P-TR rated for?

2500
