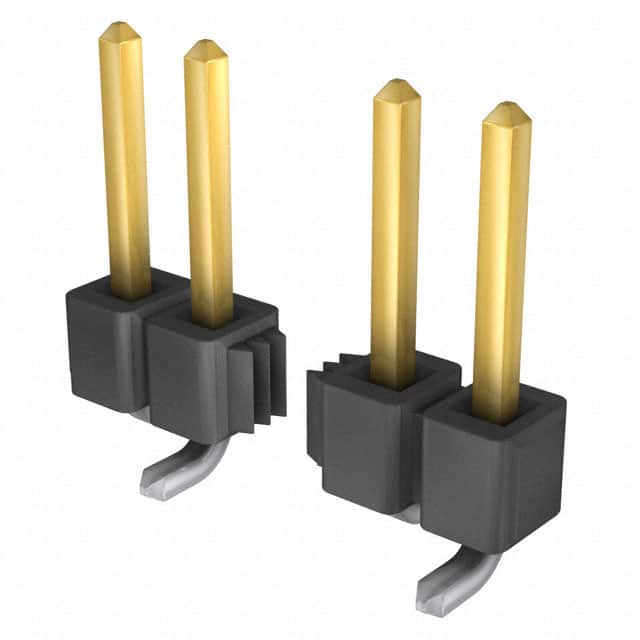

TSM-109-01-L-SV The Samtec TSM-109-01-L-SV is a 9-position, single-row, unshrouded header with 2.54mm pitch, designed for surface mount soldering. It features gold-plated phosphor bronze contacts and a black LCP insulator rated UL94 V-0.
Mfr Part #:

TSM-109-01-L-SV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec TSM-109-01-L-SV is a 9-position, single-row, unshrouded header with 2.54mm pitch, designed for surface mount soldering. It features gold-plated phosphor bronze contacts and a black LCP insulator rated UL94 V-0.
✓ Total Stock: 26 pcs
$ Price Range: $0.47 - $1.44

TSM-109-01-L-SV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
26 pcs
On Request
26 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-109-01-L-SV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TSM-109-01-L-SV Description

Short technical summary and product information.

This is a 9-position, single-row, unshrouded male pin header from Samtec's TSM series. It features a 2.54mm pitch and is designed for surface mount termination. The connector uses square pins with a contact length of 5.84mm and an insulation height of 2.54mm.



The contacts are made of phosphor bronze with a 10µ" gold plating on the post and matte tin on the tail, ensuring reliable connections. The insulator is black liquid crystal polymer (LCP) with a flammability rating of UL94 V-0. The operating temperature range is -55°C to +125°C.



Electrical ratings depend on the mating connector. When mated with Samtec SSM, the current rating is 5.4A per pin (2 positions powered) and voltage rating is 475 VAC. With BCS, voltage rating is 495 VAC. The connector is lead-free solderable and suitable for board-to-board or cable applications.



The surface mount design allows for efficient automated assembly. The push-pull fastening type provides easy mating and unmating. This header is commonly used in various electronic systems requiring a compact, reliable interconnect solution.

TSM-109-01-L-SV Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM-109-01-L-SV Header, Male Pins, 9 Position, 2.54mm Pitch, Surface Mount
Subcategory: Male Pins

TSM-109-01-L-SV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-109-01-L-SV Estimated Pricing

Qty Low High
1+ $1.44 $1.44
50+ $1.19 $1.19
100+ $1.09 $1.09
500+ $0.89 $0.89
1,000+ $0.75 $0.75
2,000+ $0.75 $0.75
5,000+ $0.60 $0.60
10,000+ $0.47 $0.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-109-01-L-SV Features

  • 9-position single-row unshrouded header.
  • 2.54mm pitch surface mount design.
  • Gold-plated phosphor bronze contacts.
  • UL94 V-0 rated LCP insulator.
  • Operating temperature -55°C to +125°C.

TSM-109-01-L-SV Applications

  • Board-to-board interconnect applications.
  • Cable-to-board connection systems.
  • General purpose signal routing.
  • Prototyping and test fixtures.

TSM-109-01-L-SV FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-109-01-L-SV have?

9 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating per pin?

Depends on mating connector: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, 5.0A with BCS (2 positions powered).

What is the voltage rating?

495 VAC when mated with BCS, 475 VAC when mated with SSM.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

10µ" gold on post, matte tin on tail.
