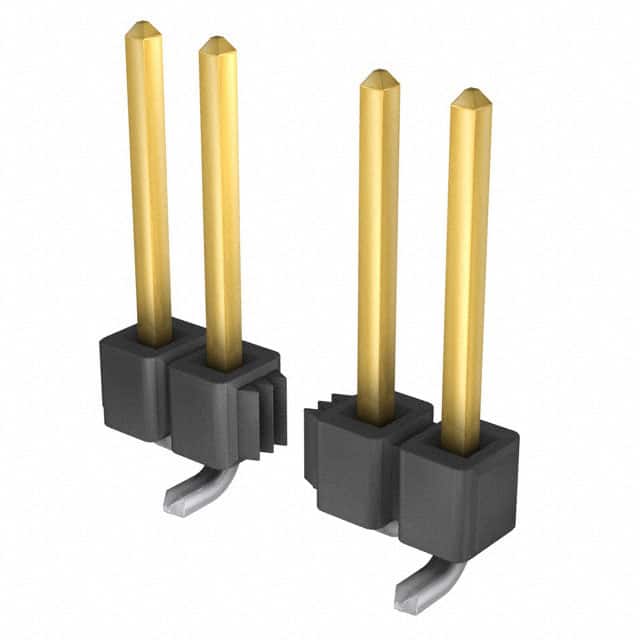

The TSM-108-02-S-SV is a surface mount header from Samtec's TSM series. It features 8 positions in a single row with a 2.54mm pitch, unshrouded design for flexible board-to-board or cable connections.
Mechanical specifications include a contact length of 8.13mm (0.320"), insulation height of 2.54mm (0.100"), and a square pin contact shape. The contact material is phosphor bronze with a gold finish on the post (30µin / 0.76µm) and matte tin on the tail. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
Environmental compliance includes RoHS3 and REACH unaffected status (unverified), and a moisture sensitivity level (MSL) of 1. The operating temperature range is -55°C to 125°C with gold plating. The part is lead-free solderable as confirmed by the datasheet.
This unshrouded header is suitable for signal interconnection in a wide range of electronic assemblies, including industrial control, instrumentation, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.36 | $1.36 |
| 56+ | $1.24 | $1.24 |
| 112+ | $1.15 | $1.15 |
| 504+ | $1.14 | $1.14 |
| 1,008+ | $1.01 | $1.01 |
| 2,016+ | $0.98 | $0.98 |
| 5,012+ | $0.80 | $0.80 |
| 10,024+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions with a 2.54mm (0.100") pitch.
Surface mount (SMD).
Gold finish on post (30µin/0.76µm) over 50µin nickel, matte tin on tail. Contact material is phosphor bronze.
-55°C to 125°C with gold plating.
RoHS3 compliant (low confidence, unverified).
Black Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
8.13mm (0.320") post height for -02 lead style.
