TSM-108-02-H-SV-P-TR Samtec TSM-108-02-H-SV-P-TR is an 8 position single row surface mount male pin header with 2.54mm pitch, gold plated phosphor bronze contacts, and black LCP insulation.
Mfr Part #:

TSM-108-02-H-SV-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-108-02-H-SV-P-TR is an 8 position single row surface mount male pin header with 2.54mm pitch, gold plated phosphor bronze contacts, and black LCP insulation.
✓ Total Stock: 4 pcs
$ Price Range: $1.80 - $3.06

TSM-108-02-H-SV-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-108-02-H-SV-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TSM-108-02-H-SV-P-TR Description

Short technical summary and product information.

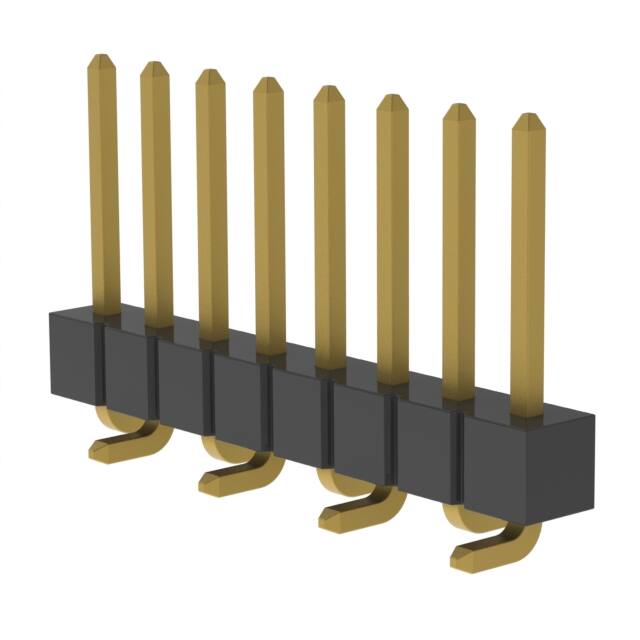

The Samtec TSM-108-02-H-SV-P-TR is a surface mount male pin header from the TSM series. It features 8 positions in a single row with a 2.54mm pitch. The contacts are made of phosphor bronze with a 30µin gold finish, and the insulator is black Liquid Crystal Polymer (LCP) rated UL94 V-0. The unshrouded header has a push-pull fastening type and a post height of 8.13mm. It is designed for board-to-board or cable applications and includes a pick and place feature for automated assembly. The operating temperature range is -55°C to 125°C. Electrical ratings vary depending on the mating connector: current rating per pin ranges from 4.1A to 5.4A, and voltage rating from 475 VAC to 495 VAC. The part is supplied in tape and reel packaging.

TSM-108-02-H-SV-P-TR Quick Information

Product Type: Header, Male Pin
Series: TSM
Canonical Name: Samtec TSM Series 8 Position Single Row Surface Mount Male Pin Header, 2.54mm Pitch, Gold Plating
Subcategory: Male Pin Header

TSM-108-02-H-SV-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

TSM-108-02-H-SV-P-TR Estimated Pricing

Qty Low High
1+ $3.06 $3.06
50+ $2.60 $2.60
125+ $2.32 $2.32
500+ $2.17 $2.17
1,000+ $2.04 $2.04
2,000+ $1.99 $1.99
5,000+ $1.80 $1.80

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-108-02-H-SV-P-TR Features

  • 8 position single row surface mount header.
  • 2.54mm pitch with 8.13mm post height.
  • Gold plated phosphor bronze contacts.
  • Black LCP insulator rated UL94 V-0.
  • Pick and place feature for automated assembly.

TSM-108-02-H-SV-P-TR Applications

  • Board-to-board interconnect applications.
  • Cable-to-board connection systems.
  • Automated surface mount assembly lines.

TSM-108-02-H-SV-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-108-02-H-SV-P-TR have?

It has 8 positions in a single row.

What is the pitch of this header?

The pitch is 2.54mm (0.100 inches).

What is the current rating per pin?

The current rating per pin depends on the mating connector: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, and 5.0A with BCS (2 positions powered).

What is the voltage rating?

The voltage rating is 495 VAC when mated with BCS and 475 VAC when mated with SSM.

What is the mounting type?

Surface mount (SMD) with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Phosphor bronze contacts with 30µin gold finish.
