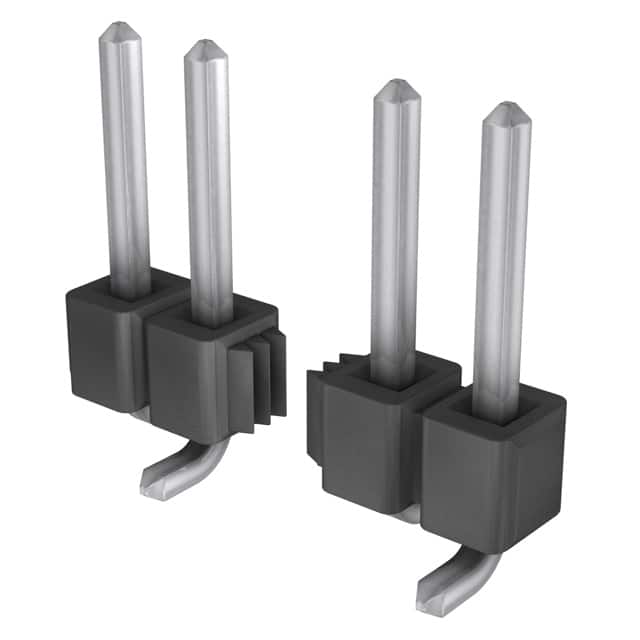

The Samtec TSM-108-01-T-SV is a surface mount unshrouded male pin header from the TSM series. It features 8 positions in a single row with a 2.54mm pitch. The contacts are made of phosphor bronze with a tin finish, providing reliable electrical connections. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This header offers versatile current and voltage ratings depending on mating connector. When mated with Samtec SSW series, it is rated for 4.7A per pin (2 positions powered). With SSM, it achieves 5.4A. Voltage ratings are 495 VAC when mated with BCS and 475 VAC with SSM. The operating temperature range is -55°C to +105°C. The lead style -01 provides a post height of 5.84mm.
The header is unshrouded with a push-pull fastening mechanism. It is designed for surface mount soldering. The lead coplanarity is 0.15mm maximum for 2-36 positions. The part is lead-free solderable.
Typical applications include board-to-board and board-to-cable connections in various electronic assemblies. It mates with Samtec SSW, BCS, SSM, IDSS, IDSD, and other series.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
| 56+ | $0.60 | $0.60 |
| 112+ | $0.51 | $0.51 |
| 504+ | $0.44 | $0.44 |
| 1,008+ | $0.43 | $0.43 |
| 2,016+ | $0.38 | $0.38 |
| 5,012+ | $0.34 | $0.34 |
| 10,024+ | $0.27 | $0.27 |
| 25,004+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in a single row.
2.54mm (0.100 inches).
Up to 5.4A per pin when mated with Samtec SSM series (2 positions powered). Other mating connectors yield 4.1A to 5.0A.
495 VAC when mated with BCS series, 475 VAC when mated with SSM series.
Surface mount (SMD) with solder termination.
-55°C to +105°C.
Phosphor bronze contacts with tin plating.
