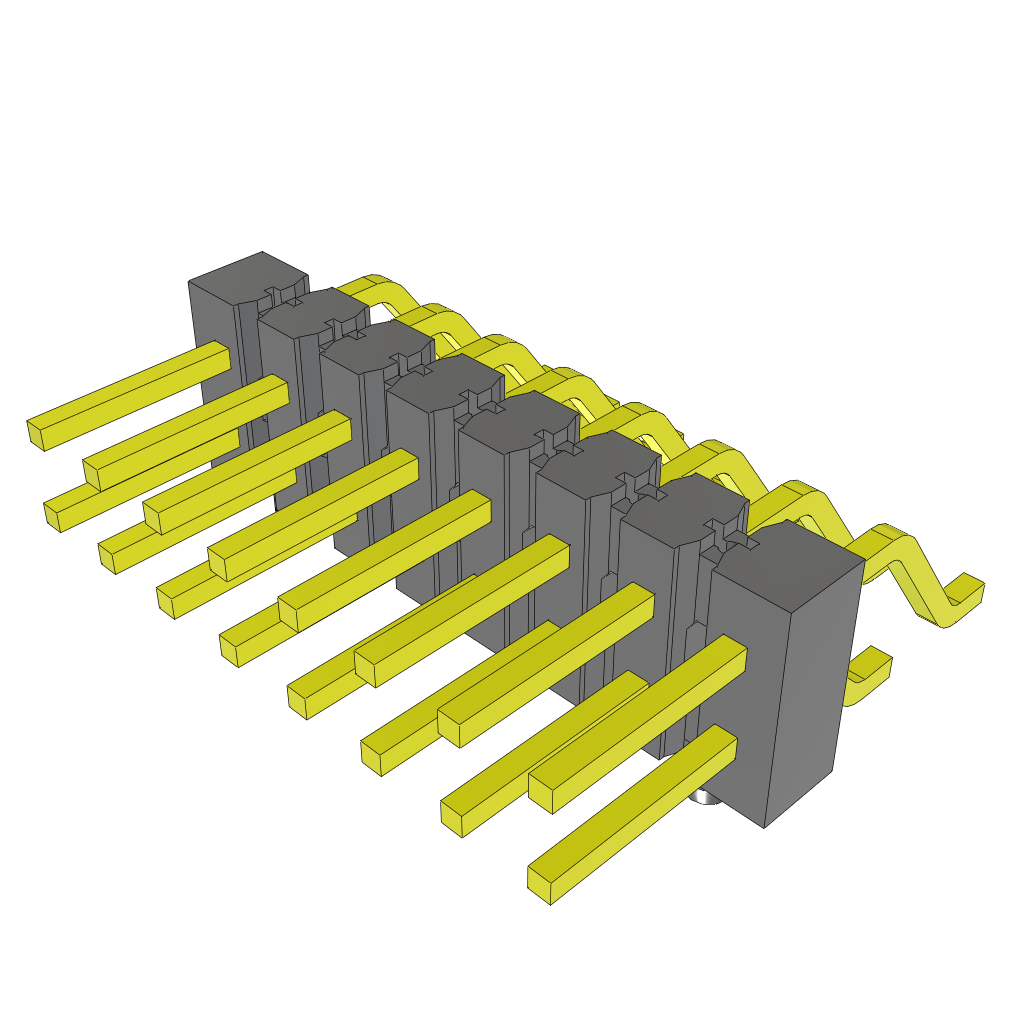

TSM-108-01-T-DH-A The Samtec TSM-108-01-T-DH-A is a .100" pitch surface mount terminal strip header. It offers up to 8 Gbps performance.
Mfr Part #:

TSM-108-01-T-DH-A

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec TSM-108-01-T-DH-A is a .100" pitch surface mount terminal strip header. It offers up to 8 Gbps performance.
✓ Total Stock: 220 pcs

TSM-108-01-T-DH-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
220 pcs
On Request
220 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-108-01-T-DH-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Lead Style
Mounting Type
Pitch
Tape & Reel
Termination Style
View Similar Products (0)

TSM-108-01-T-DH-A Description

Short technical summary and product information.

The Samtec TSM-108-01-T-DH-A is a high-density terminal strip header designed for surface mount applications. It features a .100" (2.54 mm) pitch and a .025" (0.635 mm) square post contact system.



This terminal strip is capable of up to 8 Gbps performance, making it suitable for various high-speed applications. It is designed for vertical or horizontal orientation and offers mixed technology pins, facilitating processing in surface mount environments.



As an Extended Life Product, it has passed 10-year Mixed Flowing Gas (MFG) testing and achieves high mating cycles ranging from 250 to 2,500. The product meets or exceeds MIL-DTL-55302 testing standards and is SET Qualified for Severe Environment Testing.

TSM-108-01-T-DH-A Quick Information

Product Type: Terminal Strip Header
Series: TSM
Canonical Name: .100" Surface Mount Terminal Strip
Subcategory: Header

TSM-108-01-T-DH-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TSM-108-01-T-DH-A Features

  • .100" pitch terminal strip header.
  • Surface mount termination style.
  • Up to 8 Gbps performance.
  • Extended Life Product status.
  • Meets MIL-DTL-55302 testing.

TSM-108-01-T-DH-A Applications

  • High-speed board-to-board interconnections.
  • Automotive electronic control modules.
  • Extended life high-mating cycle applications.
  • Severe environment testing compliant applications.
  • Surface mount PCB design for compact layouts.

TSM-108-01-T-DH-A FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the Samtec TSM-108-01-T-DH-A terminal strip?

The pitch of the TSM-108-01-T-DH-A terminal strip is .100 inches (2.54 mm).

What is the contact system size for this terminal strip?

The contact system for this terminal strip is a .025 inch (0.635 mm) square post.

What is the performance capability of the TSM-108-01-T-DH-A?

This terminal strip offers performance up to 8 Gbps.

What mounting and termination styles are available?

This terminal strip is designed for surface mount applications.

What is the standard package quantity for this part?

The standard package quantity for this part is 225 pieces in Tape & Reel.
