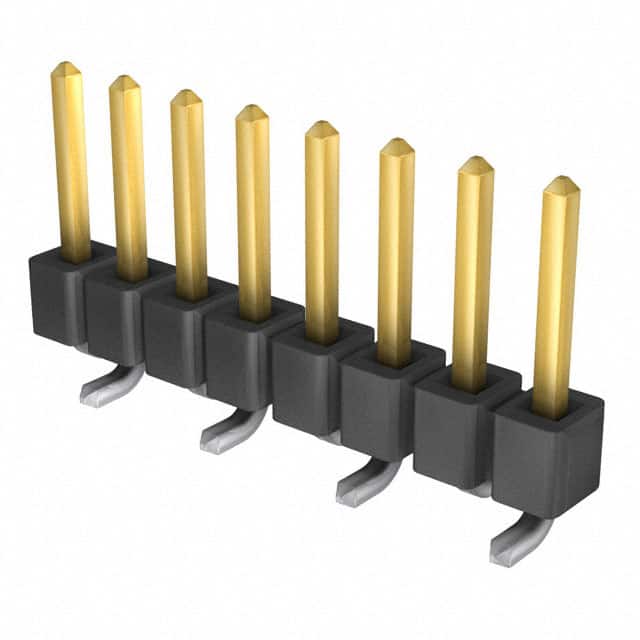

TSM-108-01-L-SV Samtec TSM-108-01-L-SV is an 8-position, single row, unshrouded surface mount header with 2.54mm pitch. It features tin plated phosphor bronze contacts and black LCP insulation.
Mfr Part #:

TSM-108-01-L-SV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-108-01-L-SV is an 8-position, single row, unshrouded surface mount header with 2.54mm pitch. It features tin plated phosphor bronze contacts and black LCP insulation.
✓ Total Stock: 14 pcs
$ Price Range: $0.44 - $1.07

TSM-108-01-L-SV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-108-01-L-SV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TSM-108-01-L-SV Description

Short technical summary and product information.

The Samtec TSM-108-01-L-SV is an 8-position, single row, unshrouded surface mount header from the TSM series. It features a 2.54mm (0.100") pitch and uses phosphor bronze contacts with a tin finish (10µin gold flash on post). The insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The part is lead-free solderable and designed for surface mount termination with a push-pull fastening type.



This header is suitable for board-to-board or cable-to-board applications. The contact length (post height) is 5.84mm (0.230") for lead style -01. The operating temperature range for the tin finish is -55°C to +105°C per datasheet, though the database lists -55°C to +125°C. Electrical ratings are generic for the TSM series: 4.7A per pin when mated with SSW and 495VAC when mated with BCS.



The component is RoHS and REACH compliant per database, but these claims are unverified. The MSL is listed as 1 (unlimited) but also unverified.

TSM-108-01-L-SV Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM-108-01-L-SV 8 Position Single Row Surface Mount Header
Subcategory: Unshrouded Surface Mount Header

TSM-108-01-L-SV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead–Free Solderable

TSM-108-01-L-SV Estimated Pricing

Qty Low High
1+ $1.07 $1.07
56+ $0.91 $0.91
112+ $0.80 $0.80
1,008+ $0.67 $0.67
2,016+ $0.65 $0.65
5,012+ $0.51 $0.51
10,024+ $0.45 $0.45
25,004+ $0.44 $0.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-108-01-L-SV Features

  • 8 position single row surface mount header.
  • 2.54mm (0.100") pitch for standard spacing.
  • Tin plated phosphor bronze contacts.
  • Black LCP insulator rated UL94 V-0.
  • Operating temperature range -55°C to +105°C.

TSM-108-01-L-SV Applications

  • Ideal for board-to-board interconnections.
  • Suitable for cable-to-board mating with IDSS or IDSD.
  • Common in prototyping and production PCBs.
  • Used in industrial and commercial electronics.

TSM-108-01-L-SV FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-108-01-L-SV have?

8 positions.

What is the pitch of the TSM-108-01-L-SV?

2.54mm (0.100").

What is the current rating of the TSM-108-01-L-SV?

4.7A per pin when mated with SSW (generic series rating).

What is the voltage rating of the TSM-108-01-L-SV?

495VAC when mated with BCS (generic series rating).

What is the mounting type of the TSM-108-01-L-SV?

Surface mount.

What is the contact finish of the TSM-108-01-L-SV?

Tin with 10µin (0.25µm) gold flash on post.

What is the operating temperature range of the TSM-108-01-L-SV?

-55°C to +105°C for tin finish (per datasheet).
