Mfr Part #:

TSM-108-01-F-DV-007

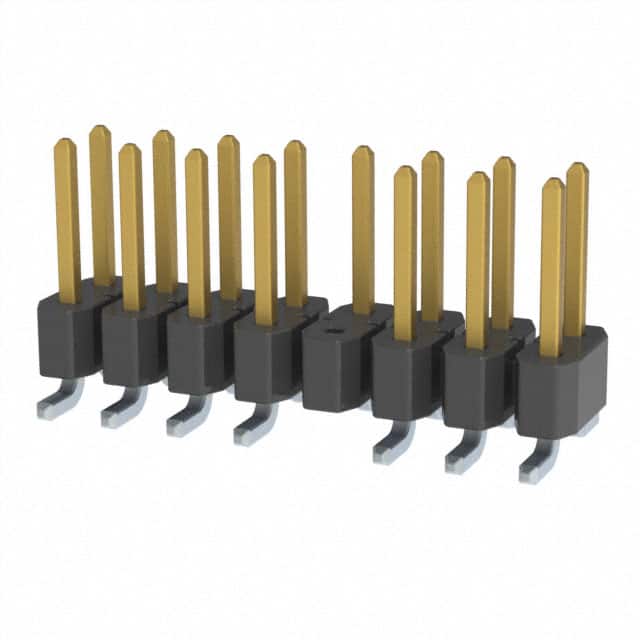

Name: TSM-108-01-F-DV-007
Brand: Samtec Inc.
SKU: TSM-108-01-F-DV-007

Mfr Name: Samtec Inc.

Description:

CONN HEADER SMD 16POS 2.54MM

Stock on Request

TSM-108-01-F-DV-007 Description

Short technical summary and product information.

CONN HEADER SMD 16POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Samtec Inc.

CONN HEADER SMD 16POS 2.54MM

Samtec Inc.

CONN HEADER SMD 16POS 2.54MM

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	3.00Âµin (0.076Âµm)
Contact Length	0.230" (5.84mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.100" (2.54mm)
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	15
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
