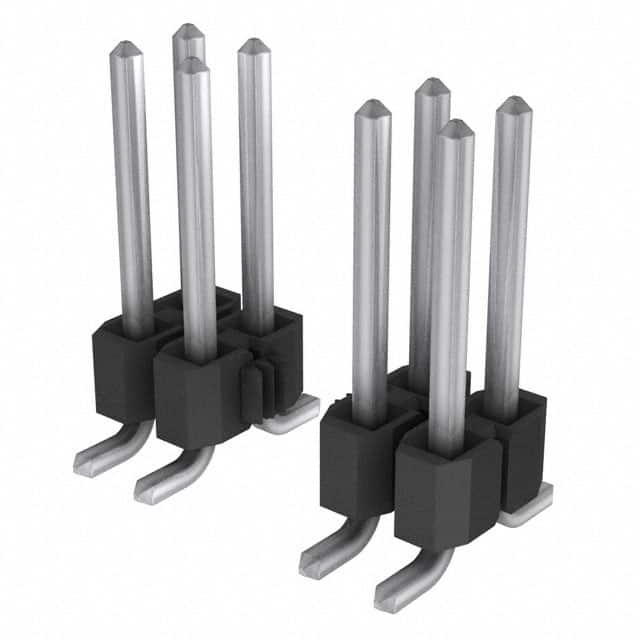

The TSM-107-02-T-DV is a 14-position, 2-row surface mount male pin header from Samtec's TSM series, featuring a 2.54mm (0.100") pitch and 2.54mm row spacing. It has an unshrouded design with a push-pull fastening mechanism. The contacts are made of phosphor bronze with a tin plating, and the insulator is black Liquid Crystal Polymer (LCP) rated UL94 V-0. The contact length is 8.13mm (0.320") and the insulator height is 2.54mm (0.100").
This connector is rated for operating temperatures from -55°C to 105°C and is lead-free solderable. Electrical ratings depend on the mating connector: voltage rating is 495 VAC when mated with BCS and 475 VAC when mated with SSM; current rating per pin ranges from 4.1 A (mated with HLE) to 5.4 A (mated with SSM). The part has undergone severe environment testing aligning with MIL-DTL-55302.
Designed for board-to-board or cable-to-board applications, the TSM-107-02-T-DV is surface mount with solder terminations. It is compatible with Samtec SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, HLE board mates and IDSS, IDSD cable mates.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.52 | $1.52 |
| 50+ | $1.17 | $1.17 |
| 96+ | $0.89 | $0.89 |
| 1,024+ | $0.65 | $0.65 |
| 2,016+ | $0.58 | $0.58 |
| 5,024+ | $0.44 | $0.44 |
| 10,016+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in 2 rows.
2.54mm (0.100").
Depends on mating connector: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, 5.0A with BCS.
495 VAC when mated with BCS, 475 VAC when mated with SSM.
Surface mount with solder terminations.
Phosphor bronze contacts with tin plating.
-55°C to 105°C.
