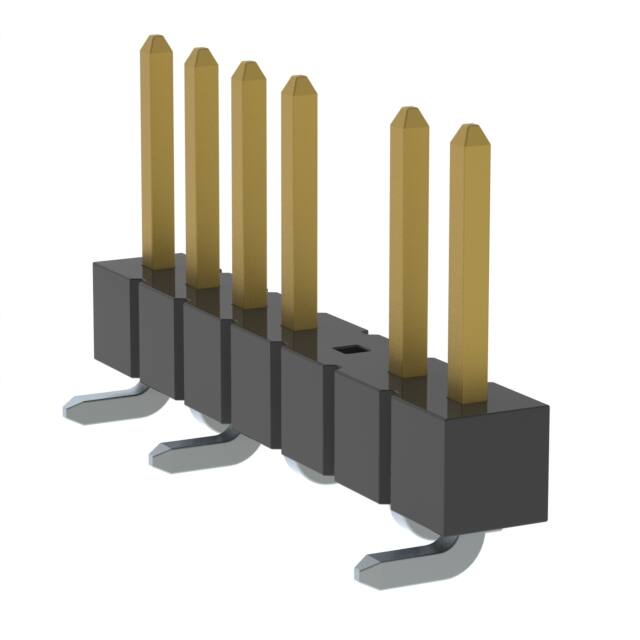

TSM-107-01-L-SV-003 Samtec TSM-107-01-L-SV-003 is a .100" (2.54mm) pitch surface mount terminal strip header with 7 positions (6 loaded) and male pins. It features tin-plated phosphor bronze contacts and a black LCP insulator rated UL94 V-0.
Mfr Part #:

TSM-107-01-L-SV-003

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-107-01-L-SV-003 is a .100" (2.54mm) pitch surface mount terminal strip header with 7 positions (6 loaded) and male pins. It features tin-plated phosphor bronze contacts and a black LCP insulator rated UL94 V-0.
✓ Total Stock: 50 pcs
$ Price Range: $0.75 - $1.36

TSM-107-01-L-SV-003 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 0750 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-107-01-L-SV-003 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-107-01-L-SV-003 Description

Short technical summary and product information.

The Samtec TSM-107-01-L-SV-003 is a .100" (2.54mm) pitch surface mount terminal strip header from the TSM series. It is a single row, 7-position (6 loaded) unshrouded header with male square pins. The contacts are made of phosphor bronze with a tin finish (10.0µin thickness) and the insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.



This header is designed for surface mount soldering and supports board-to-board or cable connections. It features push-pull fastening and has an insulation height of 2.54mm and a contact length of 5.84mm. The operating temperature range is -55°C to 125°C.



The TSM-107-01-L-SV-003 is an Extended Life Product (ELP), passing 10-year Mixed Flowing Gas (MFG) testing and achieving high mating cycles (250 to 2,500). It is also SET Qualified for severe environment testing and meets or exceeds MIL-DTL-55302 requirements. The part supports data rates up to 8 Gbps.



Packaging is available in tube (32 parts per package) or tape & reel (order TSM-107-01-L-SV-003-TR).

TSM-107-01-L-SV-003 Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM-107-01-L-SV-003 .100" Surface Mount Terminal Strip Header, 7 Positions, 2.54mm Pitch, Male Pins
Subcategory: Unshrouded Header

TSM-107-01-L-SV-003 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TSM-107-01-L-SV-003 Estimated Pricing

Qty Low High
1+ $1.36 $1.36
50+ $1.25 $1.25
96+ $1.12 $1.12
512+ $0.92 $0.92
1,024+ $0.91 $0.91
2,016+ $0.83 $0.83
5,024+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-107-01-L-SV-003 Features

  • 7-position single row surface mount header.
  • 2.54mm (0.100") pitch for compact designs.
  • Tin-plated phosphor bronze contacts.
  • Rated for -55°C to 125°C operation.
  • UL94 V-0 flammability rated insulator.

TSM-107-01-L-SV-003 Applications

  • Ideal for board-to-board connections.
  • Suitable for cable-to-board interfaces.
  • Used in high-reliability industrial systems.
  • Compatible with Samtec socket systems.
  • Designed for surface mount assembly processes.

TSM-107-01-L-SV-003 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on this header?

This header has 7 positions, with 6 positions loaded.

What is the pitch of the TSM-107-01-L-SV-003?

The pitch is 2.54mm (0.100").

What mounting type does this connector use?

It is a surface mount (SMD) connector.

What is the contact type and finish?

The contacts are male pins made of phosphor bronze with a tin finish (10.0µin thickness).

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What data rate can this header support?

It supports data rates up to 8 Gbps.

What packaging options are available?

It is available in tube (32 parts per package) or tape & reel (order TSM-107-01-L-SV-003-TR).
