TSM-106-01-T-SV-P-TR 6-position single row 2.54mm pitch surface mount header from Samtec's TSM series. Features tin-plated phosphor bronze contacts, LCP insulation, and pick-and-place pad.
Mfr Part #:

TSM-106-01-T-SV-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
6-position single row 2.54mm pitch surface mount header from Samtec's TSM series. Features tin-plated phosphor bronze contacts, LCP insulation, and pick-and-place pad.
✓ Total Stock: 3,900 pcs
$ Price Range: $0.52 - $0.77

TSM-106-01-T-SV-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3,900 pcs
On Request
3900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-106-01-T-SV-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-106-01-T-SV-P-TR Description

Short technical summary and product information.

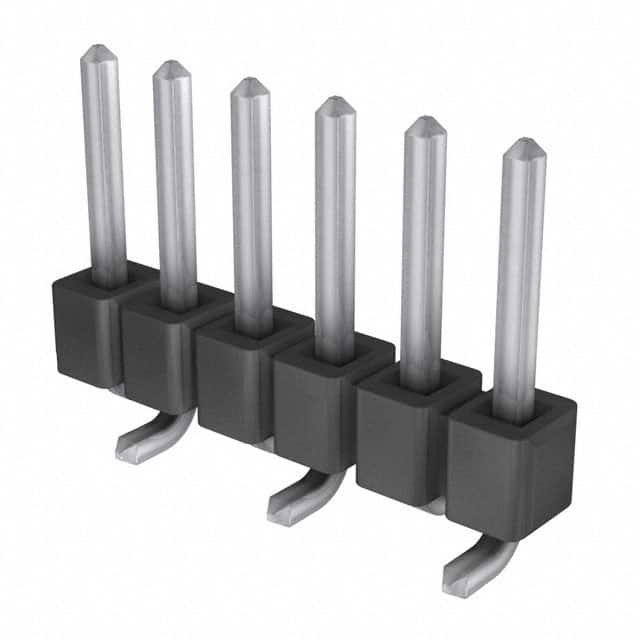

The Samtec TSM-106-01-T-SV-P-TR is a 6-position single row surface mount header with a 2.54mm (0.100") pitch. It features unshrouded male pins with a square contact shape and tin plating over phosphor bronze. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. This header supports a current rating of 4.7 A per pin when mated with an SSW socket and a voltage rating of 495 VAC when mated with a BCS socket. It is designed for high-speed performance up to 8 Gbps and is qualified for severe environment testing (SET) per MIL-DTL-55302. The operating temperature range is -55°C to +105°C. The component is packaged in tape and reel with 175 pieces per reel, suitable for automated pick-and-place assembly. The lead style -01 provides a post height of 5.84mm (0.230").

TSM-106-01-T-SV-P-TR Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM-106-01-T-SV-P-TR, 6 Position Single Row 2.54mm Pitch Surface Mount Header
Subcategory: Unshrouded Header

TSM-106-01-T-SV-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-106-01-T-SV-P-TR Estimated Pricing

Qty Low High
1+ $0.77 $0.77
50+ $0.77 $0.77
100+ $0.74 $0.74
175+ $0.74 $0.74
350+ $0.68 $0.68
875+ $0.61 $0.61
1,925+ $0.56 $0.56
4,900+ $0.53 $0.53
9,975+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-106-01-T-SV-P-TR Features

  • 6-position single row surface mount connector.
  • 2.54mm pitch for compact designs.
  • Tin-plated phosphor bronze contacts.
  • Rated for up to 4.7A current per pin.
  • Supports data rates up to 8 Gbps.

TSM-106-01-T-SV-P-TR Applications

  • Board-to-board and cable interconnections.
  • High-reliability severe environment applications.
  • Surface mount assembly with pick-and-place.
  • High-speed digital signal transmission.

TSM-106-01-T-SV-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-106-01-T-SV-P-TR have?

6 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating per pin?

4.7 A when mated with an SSW socket.

What is the voltage rating?

495 VAC when mated with a BCS socket.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to +105°C.

What is the data rate capability?

Up to 8 Gbps.
