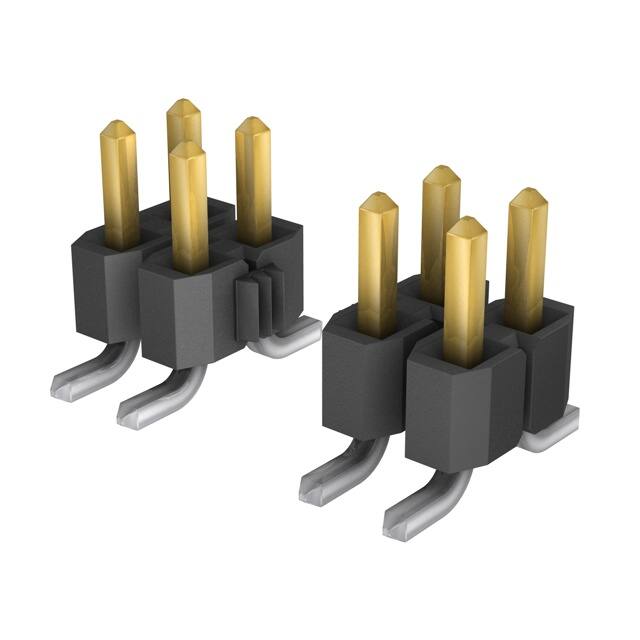

The TSM-105-04-S-DV-P-TR is a surface mount header from Samtec's TSM series, featuring 10 positions in 2 rows with a 2.54mm pitch. It uses 0.025" square phosphor bronze posts with 30µin gold plating on the mating surface and matte tin on the termination tails. The insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.
This vertical unshrouded header is designed for board-to-board or cable-to-board applications. It supports data rates up to 8 Gbps and operates over a temperature range of -55°C to 125°C. The part includes a pick and place pad for automated assembly and is supplied in tape and reel packaging (150 per package). The mating cycles are rated between 250 and 2,500, and it is an Extended Life Product with 10-year Mixed Flowing Gas (MFG) testing.
The part is lead-free solderable and has a contact length (post height) of 3.05mm. It mates with Samtec socket products such as SSW, SSQ, SSM, BCS, SLW, CES, and HLE, as well as cable mates IDSS and IDSD.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 50+ | $2.47 | $2.47 |
| 100+ | $1.80 | $1.80 |
| 150+ | $1.80 | $1.80 |
| 450+ | $1.76 | $1.76 |
| 900+ | $1.54 | $1.54 |
| 1,950+ | $1.51 | $1.51 |
| 4,950+ | $1.22 | $1.22 |
| 9,900+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, all loaded.
2.54mm (0.100").
Surface mount.
8 Gbps.
-55°C to 125°C.
30µin (0.76µm) gold.
Black Liquid Crystal Polymer (LCP), UL94 V-0.
