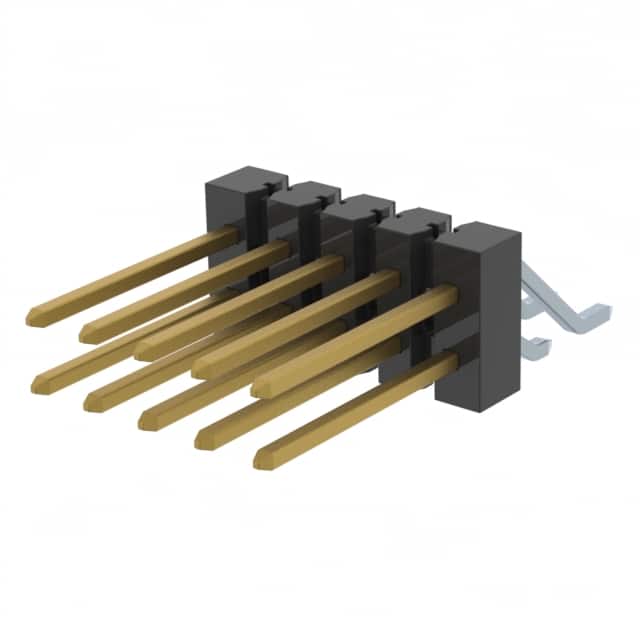

TSM-105-03-L-DH Samtec TSM-105-03-L-DH is a 10-position, 2-row, 2.54mm pitch surface mount right angle unshrouded header with 10µin gold on post and matte tin on tail. Rated for up to 4.7A per pin and 495VAC.
Mfr Part #:

TSM-105-03-L-DH

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-105-03-L-DH is a 10-position, 2-row, 2.54mm pitch surface mount right angle unshrouded header with 10µin gold on post and matte tin on tail. Rated for up to 4.7A per pin and 495VAC.
✓ Total Stock: 150 pcs
$ Price Range: $0.66 - $1.58

TSM-105-03-L-DH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-105-03-L-DH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-105-03-L-DH Description

Short technical summary and product information.

The Samtec TSM-105-03-L-DH is a 10-position, 2-row, 2.54mm pitch surface mount right angle unshrouded header from the TSM series. It features 0.025" square phosphor bronze contacts with 10µin gold plating on the mating post and matte tin on the termination tail, housed in a black liquid crystal polymer (LCP) insulator rated UL94 V-0.



This connector supports up to 8 Gbps data rates and is rated for 4.7A per pin when mated with SSW sockets (2 positions powered) and 495VAC when mated with BCS sockets. It is designed for board-to-board or cable applications and is qualified for Severe Environment Testing (SET), meeting or exceeding MIL-DTL-55302 requirements.



The -DH lead style provides a post height of 10.67mm (0.420") for bottom mount or pass-through applications. The part is lead-free solderable and operates from -55°C to +125°C with gold plating.

TSM-105-03-L-DH Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM Series 10 Position 2.54mm Pitch Surface Mount Right Angle Unshrouded Header, Male Pins, Gold/Tin Plating
Subcategory: Unshrouded Header

TSM-105-03-L-DH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

TSM-105-03-L-DH Estimated Pricing

Qty Low High
1+ $1.58 $1.58
44+ $1.57 $1.57
88+ $1.14 $1.14
1,012+ $0.95 $0.95
2,024+ $0.92 $0.92
5,016+ $0.73 $0.73
10,032+ $0.66 $0.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-105-03-L-DH Features

  • 10 position, 2 row, 2.54mm pitch header.
  • Surface mount right angle orientation.
  • 10µin gold on post, matte tin on tail.
  • Rated for 4.7A per pin with SSW socket.
  • Extended Life Product with 250-2,500 cycles.

TSM-105-03-L-DH Applications

  • Board-to-board and cable interconnect.
  • High reliability industrial and military systems.
  • Surface mount applications requiring right angle orientation.
  • Severe environment and extended life designs.

TSM-105-03-L-DH FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-105-03-L-DH have?

10 positions arranged in 2 rows.

What is the pitch of this header?

2.54 mm (0.100") with 2.54 mm row spacing.

What is the current rating of the TSM-105-03-L-DH?

4.7 A per pin when mated with SSW sockets (2 positions powered). Other ratings: 5.4 A with SSM, 4.1 A with HLE, 5.0 A with BCS.

What is the voltage rating?

495 VAC when mated with BCS sockets, 475 VAC when mated with SSM sockets.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-55°C to +125°C with gold plating.

Is this part RoHS compliant?

RoHS3 compliant per existing database, but this is unverified. Lead-free solderable is confirmed in the datasheet.
