TSM-105-02-T-DV-010 Samtec TSM series .100" pitch surface mount terminal strip with 10 positions, 2 rows, and 8.13mm post height. Tin-plated phosphor bronze contacts, LCP insulator, rated -55°C to 105°C.
Mfr Part #:

TSM-105-02-T-DV-010

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM series .100" pitch surface mount terminal strip with 10 positions, 2 rows, and 8.13mm post height. Tin-plated phosphor bronze contacts, LCP insulator, rated -55°C to 105°C.
✓ Total Stock: 164 pcs
$ Price Range: $0.60 - $1.13

TSM-105-02-T-DV-010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
164 pcs
On Request
164 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-105-02-T-DV-010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-105-02-T-DV-010 Description

Short technical summary and product information.

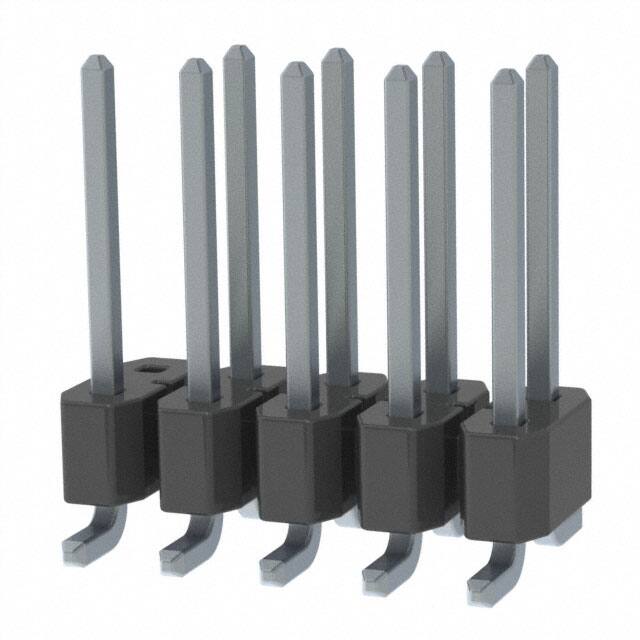

The Samtec TSM-105-02-T-DV-010 is a .100" (2.54mm) pitch surface mount terminal strip from the TSM series. It features a double row vertical (DV) configuration with 10 positions and an 8.13mm (.320") post height (lead style -02). The insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with Tin plating over 50µ" nickel underplate.



This header supports up to 8 Gbps data rate and is rated for operating temperatures from -55°C to 105°C with Tin finish. Electrical ratings vary by mating socket: 4.7 A with SSW socket, 5.4 A with SSM, 4.1 A with HLE, 5.0 A with BCS when two positions are powered. Voltage rating is 495 VAC when mated with BCS (SV/DV) and 475 VAC with SSM. It is an Extended Life Product (ELP) with 10-year Mixed Flowing Gas qualification and is Severe Environment Testing (SET) qualified meeting MIL-DTL-55302.



The component is packaged in tubes with 45 pieces per tube. It is surface mount with solder termination, suited for board-to-board or cable applications.

TSM-105-02-T-DV-010 Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM Series .100" Pitch 10 Position 2 Row Surface Mount Male Pin Header
Subcategory: Surface Mount Headers

TSM-105-02-T-DV-010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-105-02-T-DV-010 Estimated Pricing

Qty Low High
1+ $1.13 $1.13
45+ $1.05 $1.05
90+ $0.91 $0.91
540+ $0.74 $0.74
1,035+ $0.73 $0.73
2,025+ $0.64 $0.64
5,040+ $0.60 $0.60
10,035+ $0.60 $0.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-105-02-T-DV-010 Features

  • 2.54mm pitch with 10 positions in 2 rows.
  • Surface mount vertical header (DV style).
  • Supports up to 8 Gbps data rate.
  • Extended Life Product qualified for 10 years.
  • UL94 V-0 flame rated LCP insulator.

TSM-105-02-T-DV-010 Applications

  • Board-to-board interconnects requiring high density.
  • Cable-to-board connections with Samtec sockets.
  • High-speed signal applications up to 8 Gbps.
  • Industrial and automotive (A-Series variant available).

TSM-105-02-T-DV-010 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSM-105-02-T-DV-010?

The pitch is 2.54mm (0.100").

How many positions does this header have?

This header has 10 positions (2 rows of 5).

What is the current rating when mated with a SSW socket?

The current rating is 4.7 A per pin when mated with SSW (2 positions powered).

What is the operating temperature range?

The operating temperature range is -55°C to 105°C with Tin finish.

Is the TSM-105-02-T-DV-010 RoHS compliant?

RoHS compliance is stated but unverified; datasheet confirms lead-free solderable.

What mounting type does this connector use?

It is a surface mount (SMD) connector with solder termination.
