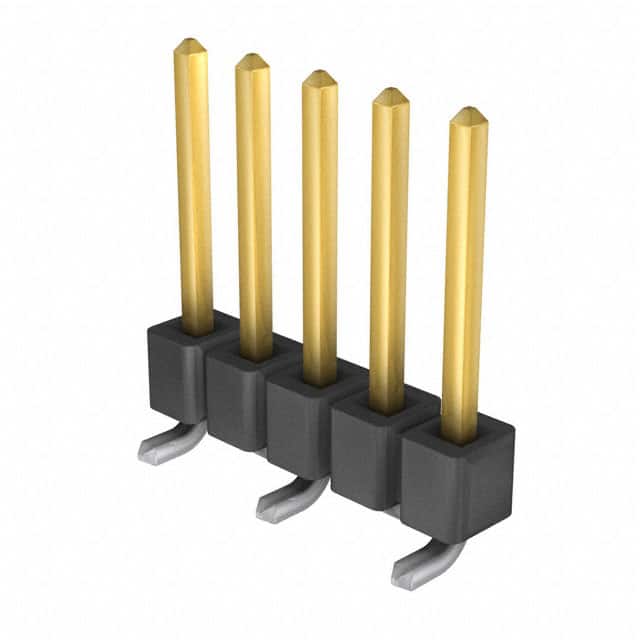

TSM-105-02-L-SV Samtec TSM-105-02-L-SV is a 5 position, single row, 2.54mm pitch surface mount unshrouded header with 10µin gold mating finish and tin termination.
Mfr Part #:

TSM-105-02-L-SV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-105-02-L-SV is a 5 position, single row, 2.54mm pitch surface mount unshrouded header with 10µin gold mating finish and tin termination.
✓ Total Stock: 4 pcs
$ Price Range: $0.24 - $0.78

TSM-105-02-L-SV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-105-02-L-SV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TSM-105-02-L-SV Description

Short technical summary and product information.

The Samtec TSM-105-02-L-SV is a 5 position, single row, 2.54mm pitch surface mount unshrouded header from the TSM series. It features a 0.025 inch square phosphor bronze contact system with a 10µin gold plating on the mating surface and tin on the termination tails. The insulator is black Liquid Crystal Polymer (LCP) rated UL94 V-0.



This header is designed for vertical orientation and uses a push-pull fastening mechanism. The post height is 8.13mm (0.320 inches) and the insulation height is 2.54mm (0.100 inches). It is rated for operating temperatures from -55°C to +125°C and supports data rates up to 8 Gbps.



Electrical ratings vary depending on the mating socket: 4.7A per pin when mated with SSW, 5.4A with SSM, 4.1A with HLE, and 5.0A with BCS. Voltage ratings are 495 VAC mated with BCS and 475 VAC mated with SSM. The part is lead-free solderable and suitable for surface mount processing.

TSM-105-02-L-SV Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM Series 5 Position Single Row 2.54mm Pitch Surface Mount Unshrouded Header with 10µin Gold Mating Finish
Subcategory: Board-to-Board / Cable Connectors

TSM-105-02-L-SV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-105-02-L-SV Estimated Pricing

Qty Low High
1+ $0.78 $0.78
45+ $0.78 $0.78
90+ $0.54 $0.54
540+ $0.49 $0.49
1,035+ $0.41 $0.41
2,025+ $0.40 $0.40
5,040+ $0.32 $0.32
10,035+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-105-02-L-SV Features

  • 5 position single row 2.54mm pitch.
  • Surface mount unshrouded header design.
  • 10µin gold mating finish on contacts.
  • Rated up to 5.4A per pin.
  • Supports 8 Gbps data rate.

TSM-105-02-L-SV Applications

  • Board-to-board interconnect applications.
  • Cable-to-board connection systems.
  • High-speed digital signal routing.
  • Industrial control and automation equipment.

TSM-105-02-L-SV FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-105-02-L-SV have?

5 positions, all loaded, in a single row.

What is the pitch of this header?

2.54mm (0.100 inches).

What is the current rating per pin?

Depends on mating socket: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, 5.0A with BCS.

What is the voltage rating?

495 VAC when mated with BCS, 475 VAC when mated with SSM.

What is the mounting type?

Surface mount with solder termination.
