Mfr Part #:

TSM-105-02-L-DH

Available from 1 distributors

Mfr Name: Samtec Inc.

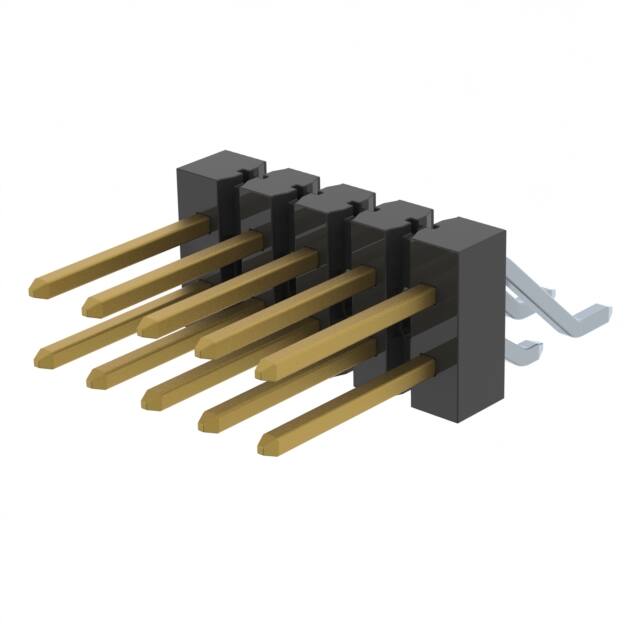

Surface mount right angle header with 10 positions in 2 rows, 2.54mm pitch, and 10µin gold on post contact finish.

✓ Total Stock: 33 pcs

$ Price Range: $0.67 - $1.83

TSM-105-02-L-DH Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	33 pcs On Request	33 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TSM-105-02-L-DH Description

Short technical summary and product information.

The TSM-105-02-L-DH is a surface mount right angle strip header from Samtec's TSM series. It features 10 positions arranged in 2 rows with a 2.54mm (0.100 inch) pitch. The header uses a 0.025 inch square post contact system with male pins and is designed for board-to-board or cable connections.

Key specifications include an insulation height of 6.10mm, contact length (post) of 8.13mm, and a black liquid crystal polymer (LCP) insulator rated UL94 V-0. The contact material is phosphor bronze with 10µin gold on the post and matte tin on the tail. Electrical performance includes current ratings up to 5.4A per pin (when mated with SSM socket), 4.7A (with SSW), or 5.0A (with BCS), and a data rate capability of 8 Gbps. The operating temperature range is -55°C to +125°C with gold plating.

The header is surface mount and right angle oriented, making it suitable for compact designs. It is an Extended Life Product with high mating cycles (250 to 2,500) and is SET (Severe Environment Testing) qualified, meeting MIL-DTL-55302 requirements. Packaging options include tube (44 pieces), tape and reel, and bulk.

TSM-105-02-L-DH Quick Information

Product Type: Header, Male Pins

Series: TSM

Canonical Name: 10 Position, 2 Row, 2.54mm Pitch, Surface Mount, Right Angle Header, Male Pins

Subcategory: Male Pins

TSM-105-02-L-DH Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

TSM-105-02-L-DH Estimated Pricing

Qty	Low	High
1+	$1.83	$1.83
44+	$1.80	$1.80
88+	$1.50	$1.50
528+	$1.09	$1.09
1,012+	$0.97	$0.97
2,024+	$0.91	$0.91
5,016+	$0.71	$0.71
10,032+	$0.67	$0.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-105-02-L-DH Features

10 position, 2 row SMT header.
2.54mm pitch (0.100 inch).
Right angle orientation for space-saving.
Up to 8 Gbps data rate performance.
Extended Life Product with 250-2500 mating cycles.

TSM-105-02-L-DH Applications

Board-to-board and cable connections.
Suitable for high-speed digital applications.
Ideal for surface mount assembly.
Used in severe environment testing qualified designs.

TSM-105-02-L-DH FAQs

5 frequently asked questions generated from this part’s specifications.

How many positions does the TSM-105-02-L-DH have?

10 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100 inch).

What is the current rating?

Up to 5.4A per pin when mated with SSM socket, 4.7A with SSW, and 5.0A with BCS.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-55°C to +125°C with gold plating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	8.13mm (0.320")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Data Rate	8 Gbps
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	6.10mm (0.240")
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mating Cycles	250 to 2,500
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
