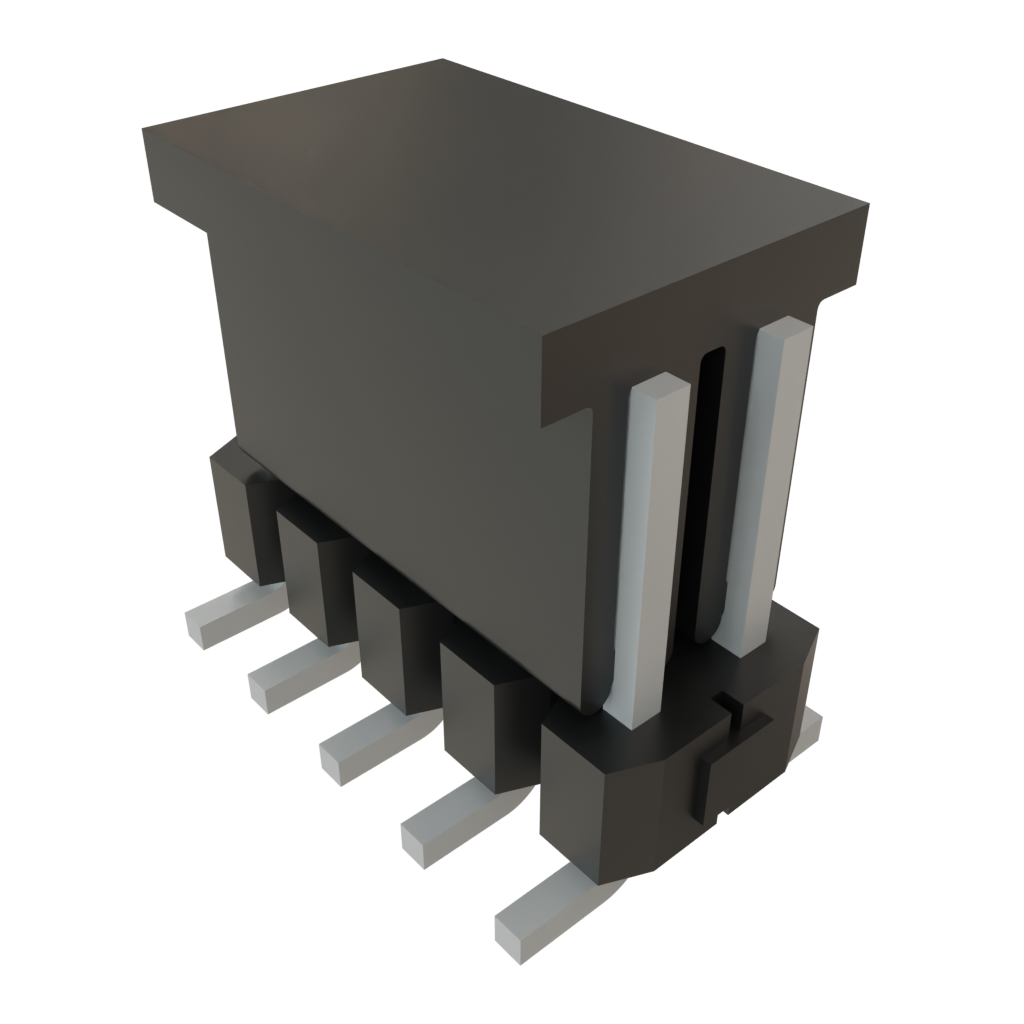

TSM-105-01-T-DV-P-TR The SMT TSM-105-01-T-DV-P-TR is a 10-position strip header with a 2.54mm pitch and surface mount termination. It offers vertical orientation and supports high-speed applications.
Mfr Part #:

TSM-105-01-T-DV-P-TR

Available from 1 distributors
Mfr Name: SMT
SMT
The SMT TSM-105-01-T-DV-P-TR is a 10-position strip header with a 2.54mm pitch and surface mount termination. It offers vertical orientation and supports high-speed applications.
✓ Total Stock: 1,630 pcs

TSM-105-01-T-DV-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
1,630 pcs
On Request
1630 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-105-01-T-DV-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Compliance
Mating Cycles
Number of Positions
Number of Rows
Orientation
Pitch
SVHC Present
Tape & Reel
Termination
View Similar Products (0)

TSM-105-01-T-DV-P-TR Description

Short technical summary and product information.

This SMT TSM-105-01-T-DV-P-TR is a 10-position, 2-row strip header designed for surface mount applications. It features a standard 0.100 inch (2.54 mm) pitch and a 0.025 inch square post contact system. The vertical orientation facilitates board-to-board connections.



This header is built for durability, offering high mating cycles ranging from 250 to 2,500. It has passed 10-year Mixed Flowing Gas (MFG) environmental testing and meets or exceeds MIL-DTL-55302 standards. The product supports high-speed performance up to 8 Gbps, making it suitable for demanding applications.



The termination style is surface mount, with options for mixed technology. The component is supplied on tape and reel, with 150 units per package, designed to facilitate automated processing. Its robust construction and compliance with stringent testing standards ensure reliability in various environments.

TSM-105-01-T-DV-P-TR Quick Information

Product Type: Strip Header
Series: TSM
Canonical Name: SMT TSM-105-01-T-DV-P-TR .100in SMT Strip Header
Subcategory: Strip Header

TSM-105-01-T-DV-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TSM-105-01-T-DV-P-TR Features

  • 10 positions, 2 rows, 2.54mm pitch
  • Vertical surface mount termination
  • Supports up to 8 Gbps performance
  • High mating cycles (250-2,500)
  • Meets MIL-DTL-55302 standards

TSM-105-01-T-DV-P-TR Applications

  • Ideal for board-to-board connections
  • Suitable for high-speed data links
  • Used in demanding environments
  • Facilitates automated assembly

TSM-105-01-T-DV-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSM-105-01-T-DV-P-TR?

The pitch is 2.54 mm.

How many positions does the TSM-105-01-T-DV-P-TR have?

It has 10 positions arranged in 2 rows.

What is the mounting style of this header?

It is a surface mount (SMT) component.

What is the maximum data rate supported?

It supports data rates up to 8 Gbps.

How many mating cycles is the TSM-105-01-T-DV-P-TR rated for?

It is rated for 2,500 mating cycles.

Is this connector MIL-DTL-55302 compliant?

Yes, it meets or exceeds MIL-DTL-55302 testing.

Does this part pass environmental testing?

Yes, it passes 10 year Mixed Flowing Gas (MFG) testing.
