| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
106 pcs
|
106 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

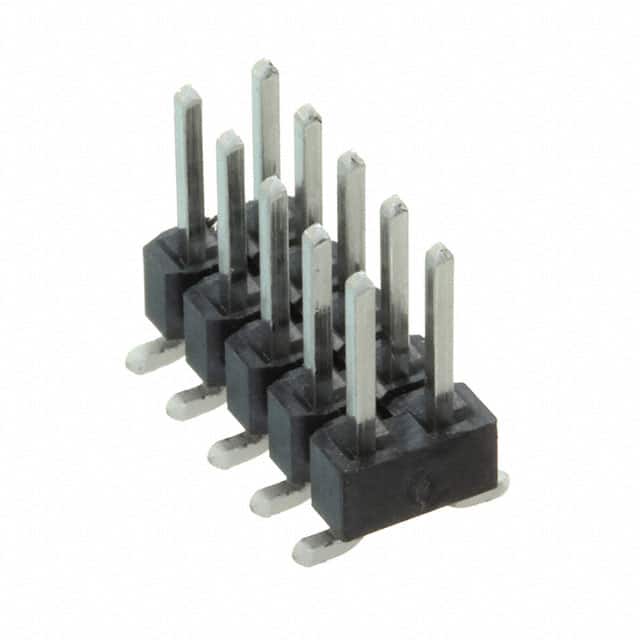

The TSM-105-01-T-DV is a 10-position, 2-row surface mount header from Samtec's TSM series. It features a 2.54mm (0.100") pitch and 2.54mm row spacing, with unshrouded square pins. The connector is designed for board-to-board or cable applications and is terminated via surface mount soldering.
This header uses phosphor bronze contacts with tin plating, housed in a black liquid crystal polymer (LCP) insulator rated UL94 V-0. It offers multiple current ratings depending on the mating socket: up to 5.4A per pin when mated with SSM, and up to 5.0A with BCS. Voltage ratings reach 495 VAC when mated with BCS. The connector supports data rates up to 8 Gbps.
The TSM-105-01-T-DV is an Extended Life Product, passing 10-year Mixed Flowing Gas testing and achieving high mating cycles (250 to 2,500). It is also Severe Environment Testing (SET) qualified and meets MIL-DTL-55302 testing requirements. The operating temperature range is -55°C to +105°C.
Packaging is tube format with 45 pieces per tube. The part is lead-free solderable and has a lead coplanarity of 0.13mm maximum for the 10-position configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.11 | $1.11 |
| 45+ | $0.87 | $0.87 |
| 90+ | $0.65 | $0.65 |
| 1,035+ | $0.50 | $0.50 |
| 2,025+ | $0.50 | $0.50 |
| 25,020+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54 mm (0.100").
Up to 5.4 A per pin when mated with SSM, with other ratings depending on mating socket.
Up to 495 VAC when mated with BCS.
Surface mount.
-55°C to +105°C.
Up to 8 Gbps.
