| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,050 pcs
|
1050 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
776 pcs
|
776 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
776 pcs
|
776 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
118 pcs
|
118 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Data Rate | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

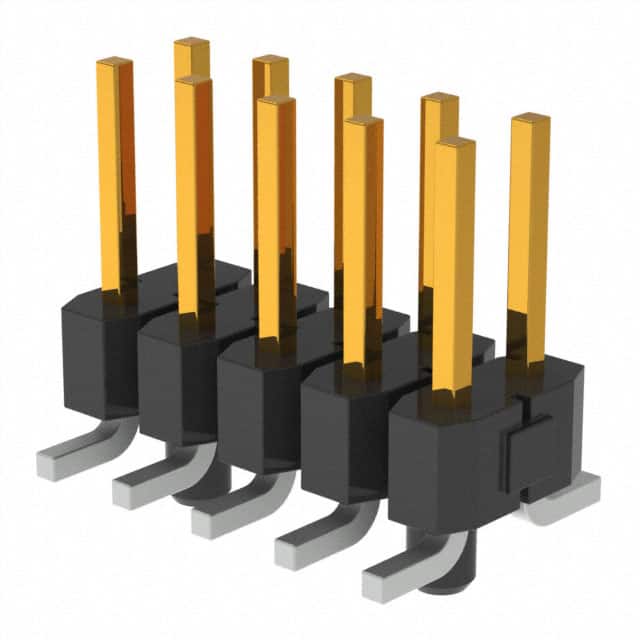

This part is a surface mount, unshrouded male pin header from the Samtec TSM series. It features 10 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing. Contacts are phosphor bronze with 30µin gold plating on the mating surface and matte tin on the termination tails. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The header has a vertical orientation and is designed for solder termination to a PCB. It includes a board guide and a pick and place pad for automated assembly.
Designed for use with compatible Samtec socket connectors such as the SSW, SSM, or BCS series, these headers support board-to-board and cable-to-board applications. The unshrouded design allows for flexible mating with various connectors. The product is rated for operating temperatures from -55°C to +125°C and offers current ratings between 4.1A and 5.4A per pin depending on the mating connector. The voltage rating reaches up to 495VAC when mated with a BCS socket. The header supports data rates up to 8 Gbps.
Packaging is tape and reel, with 150 pieces per reel, suitable for automated pick-and-place manufacturing. The part is lead-free solderable.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.39 | $3.39 |
| 10+ | $3.08 | $3.08 |
| 50+ | $2.92 | $2.92 |
| 100+ | $2.76 | $2.76 |
| 150+ | $2.16 | $2.16 |
| 900+ | $1.97 | $1.97 |
| 1,950+ | $1.94 | $1.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 10 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
The current rating per pin depends on the mating socket: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, and 5.0A with BCS.
The voltage rating is 495 VAC when mated with the BCS series socket.
This header uses surface mount mounting with solder termination.
