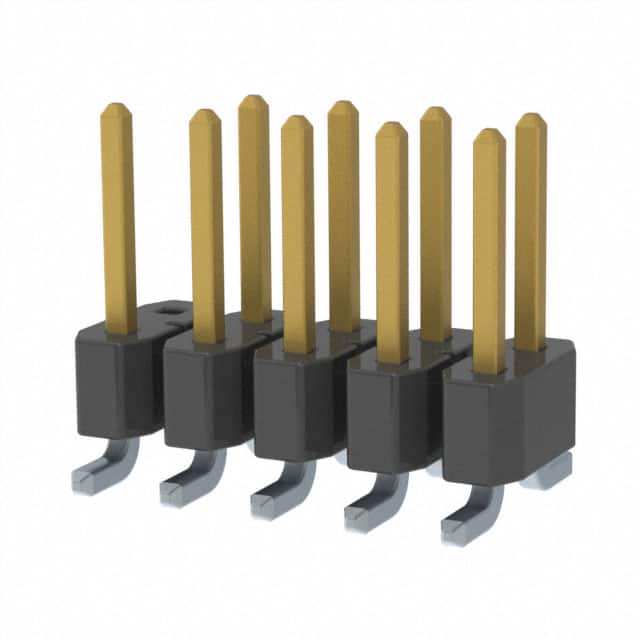

TSM-105-01-S-DV-010-P-TR Samtec TSM-105-01-S-DV-010-P-TR is a 10 position, 2 row, 2.54mm pitch surface mount unshrouded header with male pins and tin contacts. It features a pick and place pad and has pin 10 omitted.
Mfr Part #:

TSM-105-01-S-DV-010-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-105-01-S-DV-010-P-TR is a 10 position, 2 row, 2.54mm pitch surface mount unshrouded header with male pins and tin contacts. It features a pick and place pad and has pin 10 omitted.
✓ Total Stock: 332 pcs
$ Price Range: $2.16 - $3.38

TSM-105-01-S-DV-010-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
332 pcs
On Request
332 pcs On Request 1 On Request On Request 1546 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-105-01-S-DV-010-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-105-01-S-DV-010-P-TR Description

Short technical summary and product information.

The Samtec TSM-105-01-S-DV-010-P-TR is a 10 position, 2 row surface mount unshrouded header from the TSM series. It features a 2.54mm (0.100") pitch and a 2.54mm row spacing, making it suitable for board-to-board or cable applications. The connector has a push-pull fastening type and is designed for solder termination.



This header uses phosphor bronze contacts with a tin finish (30.0µin / 0.76µm) over a 50µin nickel underplate. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. It has an operating temperature range of -55°C to +125°C and is lead-free solderable.



The part includes a pick and place feature for automated assembly and is supplied in tape and reel packaging. It is rated for data rates up to 8 Gbps and is an Extended Life Product, passing 10 year Mixed Flowing Gas testing for high mating cycles.

TSM-105-01-S-DV-010-P-TR Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM Series 10 Position 2 Row 2.54mm Pitch Surface Mount Unshrouded Header with Pick and Place Pad, Pin 10 Omitted
Subcategory: Board-to-Board or Cable Connectors

TSM-105-01-S-DV-010-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-105-01-S-DV-010-P-TR Estimated Pricing

Qty Low High
1+ $3.38 $3.38
10+ $2.87 $2.87
100+ $2.44 $2.44
200+ $2.16 $2.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-105-01-S-DV-010-P-TR Features

  • 10 position 2 row 2.54mm pitch header.
  • Surface mount unshrouded male pin connector.
  • Tin plated phosphor bronze contacts.
  • Pick and place pad for automated assembly.
  • Rated for up to 8 Gbps data rate.

TSM-105-01-S-DV-010-P-TR Applications

  • Suitable for board-to-board connections.
  • Ideal for cable-to-board applications.
  • Used in high-speed digital systems.
  • Designed for automated SMT assembly.

TSM-105-01-S-DV-010-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSM-105-01-S-DV-010-P-TR?

The pitch is 2.54mm (0.100").

How many positions does this connector have?

It has 10 positions with 9 positions loaded (pin 10 omitted).

What is the mounting type for this header?

It is a surface mount (SMT) connector.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the contact finish on this part?

The contact finish is tin with a thickness of 30.0µin (0.76µm).

Is this component RoHS compliant?

RoHS compliance is unverified but the part is lead-free solderable per the datasheet.

What is the data rate capability of this connector?

It is rated for up to 8 Gbps performance.
