| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,284 pcs
|
1284 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Size | |
| Contact Type | |
| Data Rate | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

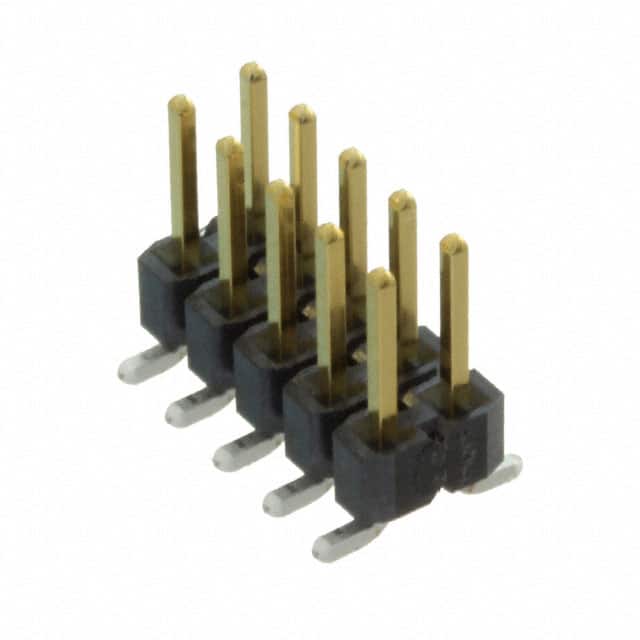

The TSM-105-01-S-DV is a 10-position, 2-row, 2.54mm pitch surface mount header from Samtec's TSM series. It features unshrouded, 0.635mm square posts with 30 microinch gold plating on the post and matte tin on the tail for reliable solderability. The insulator is black Liquid Crystal Polymer (LCP) rated UL94 V-0.
Electrical performance includes current ratings up to 5.4A per pin (mated with SSM) and voltage ratings up to 495 VAC (mated with BCS). It supports data rates up to 8 Gbps and operates over a temperature range of -55°C to +125°C with gold plating. The header is lead-free solderable and designed for demanding applications.
Packaged in tubes of 45 pieces, the part is suitable for surface mount assembly. It mates with a variety of Samtec sockets such as SSW, SSM, and BCS, enabling board-to-board and cable-to-board configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
| 45+ | $1.60 | $1.60 |
| 90+ | $1.46 | $1.46 |
| 3,015+ | $1.20 | $1.20 |
| 7,515+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
Current rating depends on the mating socket: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, and 5.0A with BCS (2 positions powered).
495 VAC when mated with BCS, and 475 VAC when mated with SSM.
Surface mount (SMT) with solder termination.
-55°C to +125°C with gold plating.
Up to 8 Gbps.
