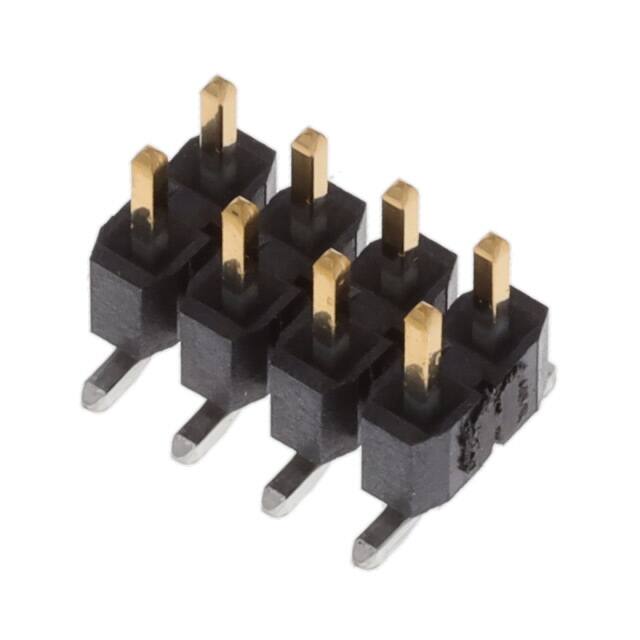

8 Position (2x4) 2.54mm pitch surface mount male pin header from Samtec's TSM series. Gold contact finish, UL94 V-0 rated LCP insulator.

✓ Total Stock: 119 pcs

$ Price Range: $0.24 - $0.91

TSM-104-04-L-DV Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	119 pcs On Request	119 pcs	On Request	1	On Request	On Request	16+	On Request	On Request

TSM-104-04-L-DV Description

Short technical summary and product information.

The TSM-104-04-L-DV is a surface mount male pin header from Samtec Inc., part of the TSM series. It features 8 positions arranged in 2 rows with a 2.54mm pitch. The contacts are made of phosphor bronze with a 10µ" gold plating on the post and matte tin on the tail. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0. This unshrouded header has a push-pull fastening type and is designed for surface mount soldering. It supports operating temperatures from -55°C to 125°C and is lead-free solderable. The post height is 3.05mm (0.120"). Voltage rating is up to 495 VAC when mated with compatible BCS series sockets, and current rating per pin is up to 5.4A with SSM series. This connector is suitable for board-to-board or cable applications and is available in tube packaging (57 pieces) or tape and reel (with -TR suffix).

TSM-104-04-L-DV Quick Information

Product Type: Header, Male Pins

Series: TSM

Canonical Name: TSM-104-04-L-DV - 8 Position (2x4) 2.54mm Pitch Surface Mount Male Pin Header

Subcategory: Unshrouded Header

TSM-104-04-L-DV Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Moisture Sensitivity Level 1 (Unlimited)

REACH Status: REACH Unaffected

Lead Free: Lead-Free Solderable: Yes

TSM-104-04-L-DV Estimated Pricing

Qty	Low	High
1+	$0.91	$0.91
57+	$0.75	$0.75
114+	$0.68	$0.68
1,026+	$0.56	$0.56
2,052+	$0.45	$0.45
5,016+	$0.40	$0.40
10,032+	$0.24	$0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-104-04-L-DV Features

8 position, 2 row, 2.54mm pitch header.
Surface mount with solder termination.
Gold plated phosphor bronze contacts.
UL94 V-0 rated LCP insulator.
Operating temperature -55°C to 125°C.

TSM-104-04-L-DV Applications

Board-to-board and cable interconnect applications.
Ideal for high-density PCB designs.
Suitable for use with Samtec mating sockets.

TSM-104-04-L-DV FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TSM-104-04-L-DV have?

8 positions arranged in 2 rows of 4.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

Varies with mating socket: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, 5.0A with BCS (2 positions powered).

What is the voltage rating?

495 VAC when mated with BCS series, 475 VAC with SSM series.

What is the mounting type?

Surface Mount (SMT).

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold (10µ" on post, matte tin on tail).

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	3.05mm (0.120")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	2.54mm (0.100")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Style	-04
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C to 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
