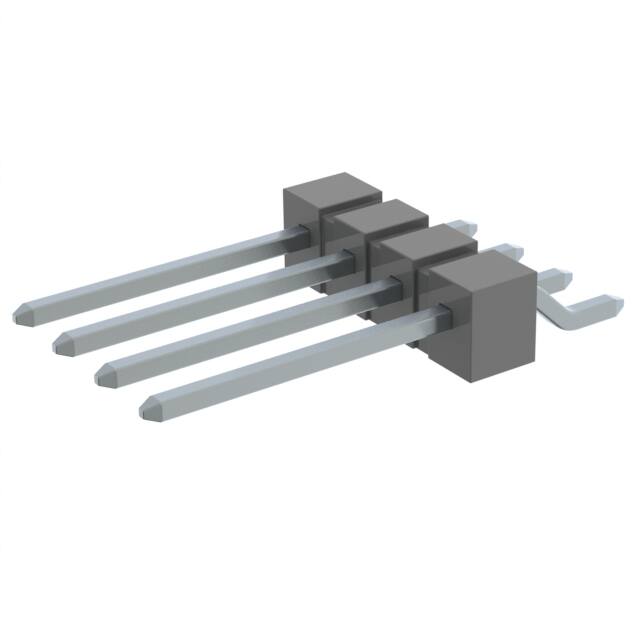

TSM-104-03-T-SH The Samtec Inc. TSM-104-03-T-SH is a 4-position male pin header with a 2.54mm pitch. It features a surface mount, right-angle mounting type and a tin contact finish.
Mfr Part #:

TSM-104-03-T-SH

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. TSM-104-03-T-SH is a 4-position male pin header with a 2.54mm pitch. It features a surface mount, right-angle mounting type and a tin contact finish.
✓ Total Stock: 2,550 pcs
$ Price Range: $0.77

TSM-104-03-T-SH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
2,550 pcs
On Request
2550 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-104-03-T-SH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TSM-104-03-T-SH Description

Short technical summary and product information.

The Samtec Inc. TSM-104-03-T-SH is a male pin header designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch and accommodates 4 positions across a single row. The header is designed for surface mount, right-angle placement.



Constructed with a Liquid Crystal Polymer (LCP) insulator and Phosphor Bronze terminals, this header is rated UL94 V-0 for material flammability. The contact finish is tin, and it operates within a temperature range of -55°C to 105°C. The current rating per pin is 5.4A when mated with an SSM connector.



This header is lead-free solderable and meets RoHS3 compliance standards. Its MSL rating is 1, indicating unlimited usability under standard conditions. The TSM series is known for its durability and alignment with MIL-DTL-55302 specifications when qualified with severe environment testing.

TSM-104-03-T-SH Quick Information

Product Type: Header
Series: TSM
Canonical Name: Samtec Inc. TSM Series Surface Mount, Right Angle Header, 4 Positions, 1 Row, 2.54mm Pitch
Subcategory: Male Pin Header

TSM-104-03-T-SH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-104-03-T-SH Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-104-03-T-SH Features

  • 4-position male pin header.
  • 2.54mm pitch for compact designs.
  • Surface mount, right-angle mounting.
  • Tin contact finish for reliability.
  • Operates from -55°C to 105°C.

TSM-104-03-T-SH Applications

  • Ideal for board-to-board connections.
  • Suitable for cable assembly applications.
  • Used in general electronic interconnects.
  • Designed for automated surface mounting.

TSM-104-03-T-SH FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

4 positions.

What is the pitch?

2.54mm (0.100").

What is the current rating per pin?

5.4A.

What is the voltage rating?

475VAC.

What is the mounting type?

Surface Mount, Right Angle.

What is the operating temperature range?

-55°C to 105°C.

What is the insulator material?

Liquid Crystal Polymer (LCP).
