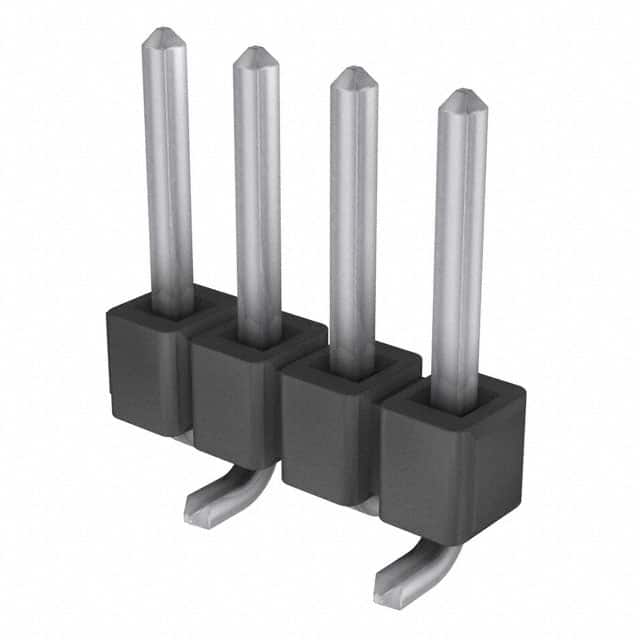

TSM-104-01-T-SV-P-TR Samtec TSM-104-01-T-SV-P-TR is a 4-position single row surface mount header with 2.54mm pitch, featuring matte tin plated square pins and black LCP insulator. Designed for board-to-board or cable applications.
Mfr Part #:

TSM-104-01-T-SV-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-104-01-T-SV-P-TR is a 4-position single row surface mount header with 2.54mm pitch, featuring matte tin plated square pins and black LCP insulator. Designed for board-to-board or cable applications.
✓ Total Stock: 209 pcs
$ Price Range: $0.43 - $0.60

TSM-104-01-T-SV-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
209 pcs
On Request
209 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-104-01-T-SV-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TSM-104-01-T-SV-P-TR Description

Short technical summary and product information.

The Samtec TSM-104-01-T-SV-P-TR is a 4-position single row surface mount header part of the TSM series. It features a 2.54mm (0.100 inch) pitch and unshrouded design with square male pins. The contact material is phosphor bronze with a matte tin plating over 50 microinches of nickel, and the insulator is black liquid crystal polymer (LCP) rated UL94 V-0.



This header is designed for board-to-board or cable interconnect applications and supports data rates up to 8 Gbps. It is an Extended Life Product passing 10-year mixed flowing gas testing and achieving high mating cycles (250 to 2,500). The part is SET Qualified for severe environment testing, meeting MIL-DTL-55302 requirements.



The surface mount termination includes a pick and place pad for automated assembly. The operating temperature range is -55°C to +105°C with tin plating. Packaging is tape and reel with 325 pieces per reel. This component is lead-free solderable and RoHS3 compliant (unverified).

TSM-104-01-T-SV-P-TR Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: 4 Position Single Row 2.54mm Pitch Surface Mount Unshrouded Header, Male Pins, Tin Plated, Black LCP Insulator
Subcategory: Single Row Headers

TSM-104-01-T-SV-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-104-01-T-SV-P-TR Estimated Pricing

Qty Low High
1+ $0.60 $0.60
325+ $0.54 $0.54
650+ $0.52 $0.52
1,300+ $0.50 $0.50
1,625+ $0.46 $0.46
2,275+ $0.43 $0.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-104-01-T-SV-P-TR Features

  • 4-position single row unshrouded header.
  • 2.54mm pitch for standard layouts.
  • Surface mount with pick and place pad.
  • Matte tin plated phosphor bronze contacts.
  • Extended life product for high mating cycles.

TSM-104-01-T-SV-P-TR Applications

  • Board-to-board and cable interconnect applications.
  • Suitable for high-speed data up to 8 Gbps.
  • Used in severe environment testing qualified designs.
  • Ideal for automated SMT assembly processes.

TSM-104-01-T-SV-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions.

What is the pitch of this connector?

2.54mm (0.100 inch).

What is the mounting type?

Surface mount (SMT).

What is the contact material?

Phosphor bronze with matte tin plating over 50 microinches nickel.

What is the operating temperature range?

-55°C to +105°C with tin plating.

What is the standard packaging quantity?

325 pieces per tape and reel.

Is this product RoHS compliant?

Yes, RoHS3 compliant (unverified low confidence).
