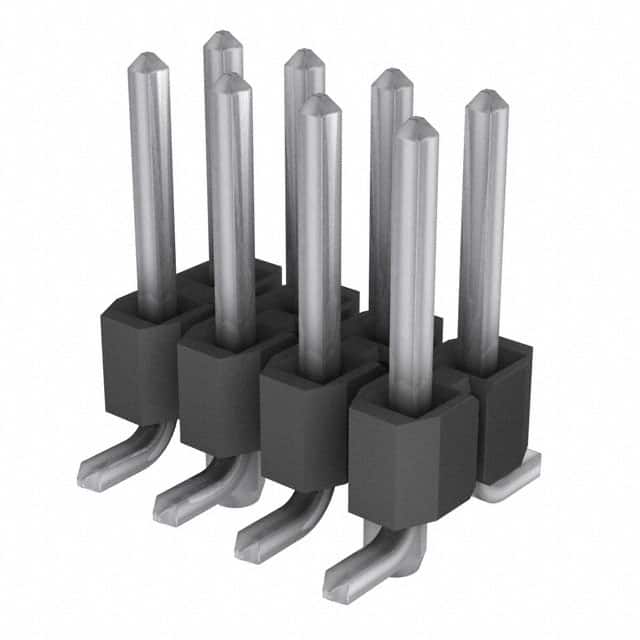

TSM-104-01-T-DV-A-P-TR Samtec TSM-104-01-T-DV-A-P-TR is a surface mount header with 8 positions in 2 rows, 2.54mm pitch, tin plating, and a vertical orientation. It features board guide and pick-and-place pads for automated assembly.
Mfr Part #:

TSM-104-01-T-DV-A-P-TR

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-104-01-T-DV-A-P-TR is a surface mount header with 8 positions in 2 rows, 2.54mm pitch, tin plating, and a vertical orientation. It features board guide and pick-and-place pads for automated assembly.
✓ Total Stock: 2,360 pcs
$ Price Range: $0.73 - $1.53

TSM-104-01-T-DV-A-P-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,180 pcs
On Request
1180 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,180 pcs
On Request
1180 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-104-01-T-DV-A-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-104-01-T-DV-A-P-TR Description

Short technical summary and product information.

This is a surface mount header from Samtec's TSM series, featuring 8 male pin contacts arranged in 2 rows with a 2.54mm pitch. The contacts are made of phosphor bronze with a tin finish, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.



The header is unshrouded with a push-pull fastening type and a vertical orientation. It includes board guide and pick-and-place features for efficient SMT assembly. The operating temperature range is -55°C to 105°C.



Electrical ratings are derived from the TSM series: voltage rating up to 495 VAC when mated with BCS sockets, and current ratings vary from 4.1 A to 5.4 A per pin depending on mating connector. The part supports data rates up to 8 Gbps and is SET qualified for severe environment testing.



Packaging is tape and reel with 175 pieces per reel. The part is lead-free solderable and RoHS3 compliant (unverified). It is an Extended Life Product with high mating cycle capability.

TSM-104-01-T-DV-A-P-TR Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM Series 8 Position 2.54mm Pitch Surface Mount Header, Male Pins, Tin Plating
Subcategory: Male Pins

TSM-104-01-T-DV-A-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable: Yes

TSM-104-01-T-DV-A-P-TR Estimated Pricing

Qty Low High
1+ $1.53 $1.53
100+ $1.18 $1.18
175+ $1.18 $1.18
350+ $1.01 $1.01
875+ $0.91 $0.91
1,925+ $0.88 $0.88
4,900+ $0.77 $0.77
9,975+ $0.73 $0.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-104-01-T-DV-A-P-TR Features

  • 8 positions in 2 rows at 2.54mm pitch.
  • Surface mount with vertical orientation.
  • Tin-plated phosphor bronze contacts.
  • Board guide and pick-and-place features.
  • Extended Life Product with high mating cycles.

TSM-104-01-T-DV-A-P-TR Applications

  • Board to board or cable connections.
  • Suitable for automated SMT assembly.
  • Ideal for severe environment applications.
  • Supports high-speed data up to 8 Gbps.

TSM-104-01-T-DV-A-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

8 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating per pin?

Depends on mating connector: 4.7 A with SSW, 5.4 A with SSM, 4.1 A with HLE, 5.0 A with BCS (2 positions powered).

What is the voltage rating?

495 VAC when mated with BCS, 475 VAC when mated with SSM.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to 105°C.

What is the maximum data rate?

8 Gbps.
