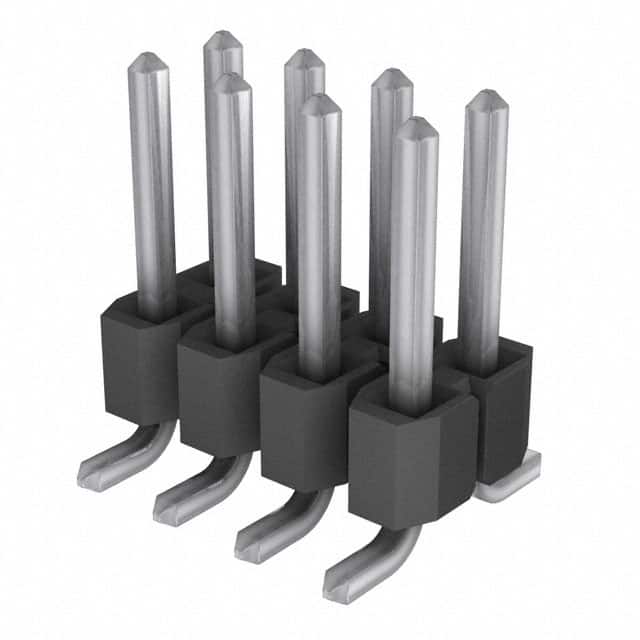

TSM-104-01-T-DV Samtec TSM-104-01-T-DV is an 8-position, 2-row, 2.54mm pitch surface mount male pin header with tin contact finish. It is unshrouded with push-pull fastening and operates from -55°C to 105°C.
Mfr Part #:

TSM-104-01-T-DV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-104-01-T-DV is an 8-position, 2-row, 2.54mm pitch surface mount male pin header with tin contact finish. It is unshrouded with push-pull fastening and operates from -55°C to 105°C.
✓ Total Stock: 20 pcs
$ Price Range: $0.26 - $0.74

TSM-104-01-T-DV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-104-01-T-DV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TSM-104-01-T-DV Description

Short technical summary and product information.

The Samtec TSM-104-01-T-DV is an 8-position, 2-row, 2.54mm pitch surface mount male pin header from the TSM series. It features a .025in (0.635mm) square post contact system with phosphor bronze contacts and tin plating. The insulator is black Liquid Crystal Polymer (LCP) rated UL94 V-0. This unshrouded header supports board-to-board or cable style connections with push-pull fastening. Operating temperature range is -55°C to 105°C. Current rating is 4.7A per pin when mated with SSW sockets and 5.4A per pin with SSM sockets. Maximum voltage rating is 495 VAC when mated with BCS sockets. The part is lead-free solderable and is packaged in tubes of 57 pieces.

TSM-104-01-T-DV Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM Series, 8 Position, 2 Row, 2.54mm Pitch, Surface Mount, Tin, Male Pin Header
Subcategory: Surface Mount Header

TSM-104-01-T-DV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

TSM-104-01-T-DV Estimated Pricing

Qty Low High
1+ $0.74 $0.74
57+ $0.68 $0.68
114+ $0.55 $0.55
513+ $0.40 $0.40
1,026+ $0.36 $0.36
2,052+ $0.34 $0.34
5,016+ $0.28 $0.28
25,023+ $0.26 $0.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-104-01-T-DV Features

  • 8 positions in 2 rows.
  • 2.54mm (0.100in) pitch spacing.
  • Surface mount solder termination.
  • Phosphor bronze contact material.
  • UL94 V-0 insulation rating.

TSM-104-01-T-DV Applications

  • Suitable for board-to-board connections.
  • Ideal for cable-to-board applications.
  • Extended Life Product for high mating cycles.
  • SET qualified for severe environment testing.

TSM-104-01-T-DV FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-104-01-T-DV have?

It has 8 positions arranged in 2 rows.

What is the pitch of this header?

The pitch is 2.54mm (0.100in).

What is the current rating per pin?

4.7A per pin when mated with SSW sockets; 5.4A per pin when mated with SSM sockets.

What is the voltage rating?

Maximum 495 VAC when mated with BCS sockets.

What is the mounting type?

Surface mount (SMD).

What is the operating temperature range?

-55°C to 105°C.

What is the packaging and standard quantity?

Packaged in tubes; standard quantity is 57 per tube.
