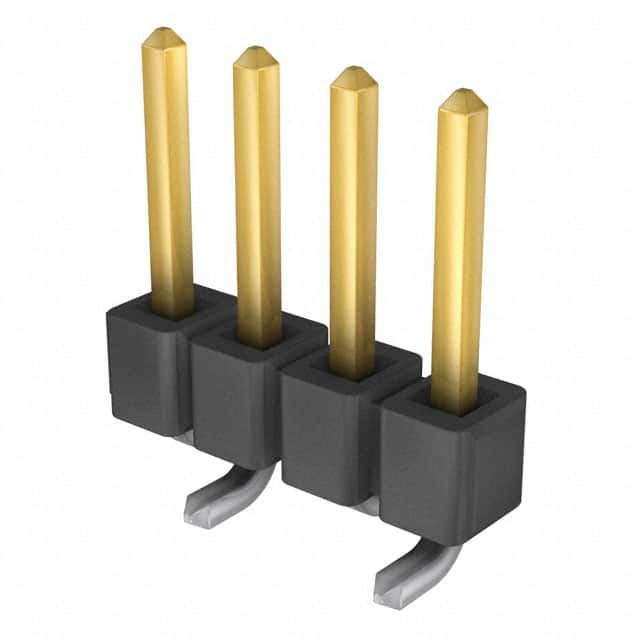

TSM-104-01-S-SV-P Samtec TSM-104-01-S-SV-P is a 4-position, single row, vertical surface mount header with 2.54mm pitch and 30µ" gold on post, matte tin on tail contacts.
Mfr Part #:

TSM-104-01-S-SV-P

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-104-01-S-SV-P is a 4-position, single row, vertical surface mount header with 2.54mm pitch and 30µ" gold on post, matte tin on tail contacts.
✓ Total Stock: 192 pcs
$ Price Range: $0.79 - $1.13

TSM-104-01-S-SV-P Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
156 pcs
On Request
156 pcs On Request 1 On Request On Request 1321 On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
36 pcs
On Request
36 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-104-01-S-SV-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-104-01-S-SV-P Description

Short technical summary and product information.

The Samtec TSM-104-01-S-SV-P is a .100" (2.54mm) pitch surface mount terminal strip from the TSM series. It features 4 positions in a single row with a vertical orientation and unshrouded design. The contacts are phosphor bronze with 30µ" gold plating on the post and matte tin on the tail, over 50µ" nickel underplating. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0.



This header is designed for surface mount soldering and includes a pick-and-place feature for automated assembly. It supports board-to-board or cable mating with Samtec socket series such as SSW, SSM, BCS, and HLE. The operating temperature range is -55°C to +125°C with gold plating. Electrical ratings include up to 5.4A per pin (mated with SSM) and voltage ratings up to 495 VAC (mated with BCS). The part supports data rates up to 8 Gbps.



Packaging is in tubes with 57 pieces per tube. The part is lead-free solderable and RoHS3 compliant (unverified). It is an Extended Life Product (ELP) with high mating cycle durability (250 to 2,500 cycles) and passes 10-year Mixed Flowing Gas testing.

TSM-104-01-S-SV-P Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM Series .100" Surface Mount Terminal Strip, 4 Positions, Single Row, Vertical, Unshrouded Header
Subcategory: Unshrouded Male Pin Header

TSM-104-01-S-SV-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-104-01-S-SV-P Estimated Pricing

Qty Low High
1+ $1.13 $1.13
57+ $1.03 $1.03
114+ $0.90 $0.90
513+ $0.83 $0.83
1,026+ $0.79 $0.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-104-01-S-SV-P Features

  • 4-position single row SMD header.
  • 2.54mm pitch with 0.025" square posts.
  • 30µ" gold on post, matte tin on tail.
  • Rated up to 5.4A per pin and 495 VAC.
  • Supports 8 Gbps data rate performance.

TSM-104-01-S-SV-P Applications

  • Board-to-board stacking applications.
  • Cable-to-board interconnect systems.
  • High-speed digital signal routing.
  • Automated pick-and-place assembly.
  • Severe environment and high mating cycle use.

TSM-104-01-S-SV-P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSM-104-01-S-SV-P?

The pitch is 2.54mm (0.100").

How many positions does this header have?

It has 4 positions in a single row.

What is the current rating per pin?

Current rating depends on mating connector: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, 5.0A with BCS.

What is the voltage rating?

495 VAC when mated with BCS, 475 VAC when mated with SSM.

What is the mounting type?

Surface mount (SMD) with solder termination.

What is the operating temperature range?

-55°C to +125°C with gold plating.

What is the contact finish?

30µ" Gold on post, Matte Tin on tail, over 50µ" Nickel underplating.
