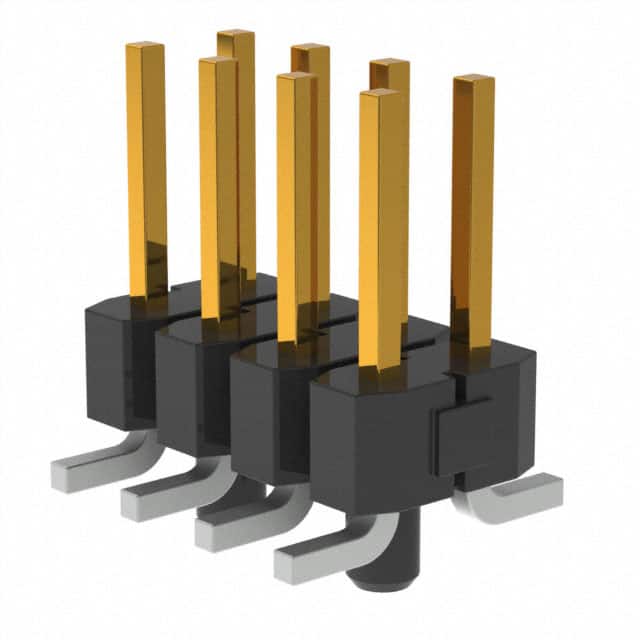

The Samtec TSM-104-01-S-DV-A is a .100in (2.54mm) pitch surface mount strip header from the TSM series. It features 8 positions arranged in 2 rows with a vertical orientation. The connector uses phosphor bronze contacts with a 30µin gold finish on the post and a matte tin finish on the tail, housed in a black liquid crystal polymer (LCP) insulator.
This header is designed for board-to-board or cable applications and supports data rates up to 8 Gbps. It is an Extended Life Product (ELP) rated for high mating cycles (250 to 2,500) and passes 10-year Mixed Flowing Gas (MFG) testing. The operating temperature range is -55°C to +125°C with gold plating.
The part includes a board guide feature and is packaged in a tube with a standard quantity of 57. It is lead-free solderable and has a UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.98 | $1.98 |
| 57+ | $1.80 | $1.80 |
| 114+ | $1.73 | $1.73 |
| 513+ | $1.52 | $1.52 |
| 1,026+ | $1.51 | $1.51 |
| 2,052+ | $1.32 | $1.32 |
| 5,016+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 8 positions in 2 rows.
It is a surface mount (SMT) component.
The operating temperature range is -55°C to +125°C.
The contact finish is 30µin gold on the post and matte tin on the tail.
Current rating depends on the mating connector, ranging from 4.1A to 5.4A per pin.
Voltage rating is 495 VAC when mated with BCS and 475 VAC when mated with SSM.
