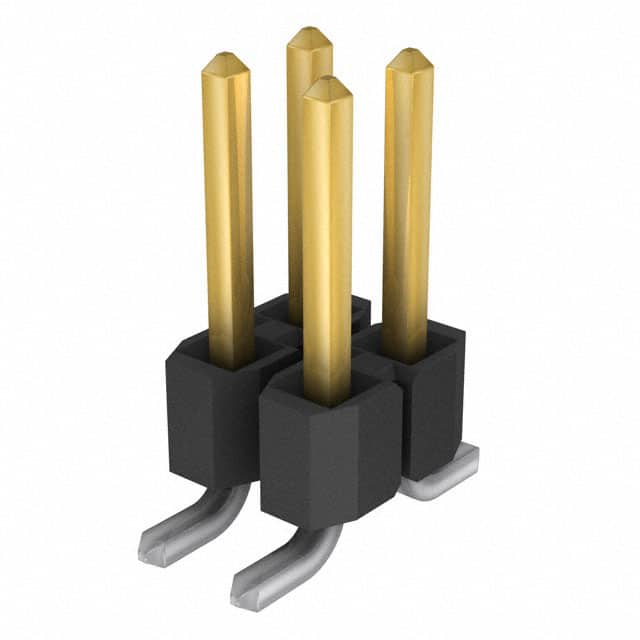

TSM-104-01-L-DV-P-TR Samtec TSM-104-01-L-DV-P-TR is an 8-position, 2-row, 2.54mm pitch surface mount unshrouded header with 0.025" square posts, gold mating finish, and pick-and-place pad.
Mfr Part #:

TSM-104-01-L-DV-P-TR

Available from 3 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TSM-104-01-L-DV-P-TR is an 8-position, 2-row, 2.54mm pitch surface mount unshrouded header with 0.025" square posts, gold mating finish, and pick-and-place pad.
✓ Total Stock: 4,623 pcs
$ Price Range: $0.52 - $0.97

TSM-104-01-L-DV-P-TR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,512 pcs
On Request
4512 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-104-01-L-DV-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-104-01-L-DV-P-TR Description

Short technical summary and product information.

The Samtec TSM-104-01-L-DV-P-TR is a .100" (2.54mm) pitch surface mount strip header from the TSM series. It features 8 positions arranged in 2 rows with vertical orientation and unshrouded design. The contacts are phosphor bronze with 10µ" gold plating on the mating surface and matte tin on the tails, housed in a black liquid crystal polymer (LCP) insulator rated UL94 V-0.



This header is designed for board-to-board or cable applications and supports data rates up to 8 Gbps. It includes a pick-and-place pad for automated assembly and is packaged in tape and reel (200 pieces per reel). The operating temperature range is -55°C to +125°C with gold plating.



Electrical ratings include current per pin up to 5.4A when mated with SSM sockets and voltage ratings up to 495 VAC when mated with BCS sockets. The part is lead-free solderable and RoHS3 compliant (unverified).

TSM-104-01-L-DV-P-TR Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM-104-01-L-DV-P-TR .100" (2.54mm) Pitch SMT Strip Header, 8 Positions, 2 Rows, Vertical, Unshrouded, Male Pins, Gold/Tin Plating, Pick and Place Pad, Tape & Reel
Subcategory: Unshrouded SMT Strip Header

TSM-104-01-L-DV-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable: Yes

TSM-104-01-L-DV-P-TR Estimated Pricing

Qty Low High
1+ $0.97 $0.97
100+ $0.93 $0.93
200+ $0.69 $0.69
400+ $0.65 $0.65
1,000+ $0.59 $0.59
2,400+ $0.57 $0.57
5,000+ $0.53 $0.53
10,000+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-104-01-L-DV-P-TR Features

  • 8 positions in 2 rows at 2.54mm pitch.
  • Surface mount with pick-and-place pad.
  • 10µ" gold plating on mating surface.
  • Rated for up to 8 Gbps data rate.
  • Operating temperature range -55°C to +125°C.

TSM-104-01-L-DV-P-TR Applications

  • Board-to-board and cable interconnect applications.
  • High-speed digital signal routing up to 8 Gbps.
  • Automated SMT assembly with pick-and-place pad.
  • Extended life products requiring high mating cycles.

TSM-104-01-L-DV-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-104-01-L-DV-P-TR have?

It has 8 positions arranged in 2 rows.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What is the mounting type?

Surface mount (SMT) with solder termination.

What is the current rating per pin?

Current rating depends on mating socket: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, and 5.0A with BCS (2 positions powered).

What is the voltage rating?

495 VAC when mated with BCS, 475 VAC when mated with SSM.

What is the operating temperature range?

-55°C to +125°C with gold plating.

What plating is used on the contacts?

10µ" gold on the mating surface and matte tin on the tails.
