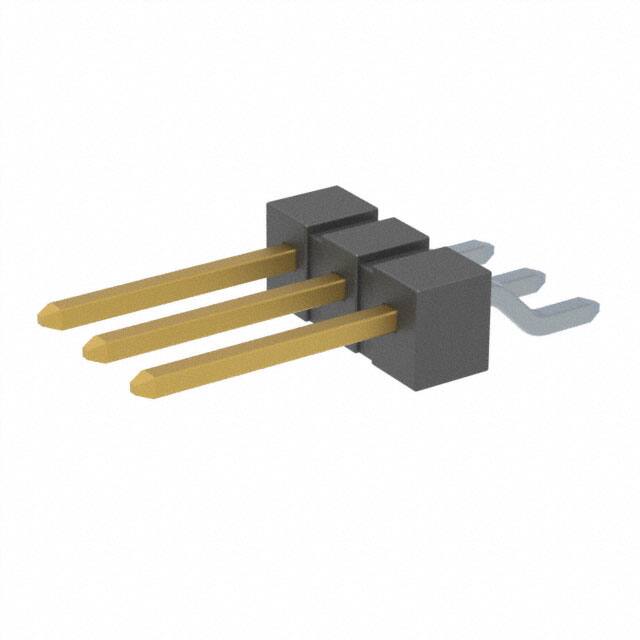

The Samtec TSM-103-02-L-SH-K-TR is a 3-position, 1-row, 2.54mm (0.100") pitch unshrouded male pin header designed for surface-mount, right-angle mounting. Part of the TSM series, this connector features a 0.025" square post contact system with a post height of 8.13mm (0.320") and an insulation height of 3.05mm (0.120").
The contacts are made of phosphor bronze with a 10µ" gold finish on the post and matte tin on the tail, over a 50µ" nickel underplate, offering reliable signal integrity. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, suitable for a wide operating temperature range of -55°C to 125°C.
This header is rated for up to 8 Gbps data rate and is designed for board-to-board or cable connections. It includes a pick-and-place feature for automated assembly and is packaged in tape and reel with 425 pieces per reel. The right-angle orientation allows for space-saving designs on PCBs.
Mating options include Samtec sockets such as SSW, SSM, and HLE, among others. The part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). Note: compliance status is based on database records and should be verified with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
| 50+ | $0.80 | $0.80 |
| 100+ | $0.66 | $0.66 |
| 425+ | $0.64 | $0.64 |
| 850+ | $0.59 | $0.59 |
| 1,700+ | $0.55 | $0.55 |
| 4,675+ | $0.51 | $0.51 |
| 9,775+ | $0.49 | $0.49 |
| 24,650+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions, single row, all loaded.
2.54mm (0.100").
Surface mount, right angle.
10µ" gold on post, matte tin on tail.
-55°C to 125°C.
Up to 8 Gbps.
Tape and reel, 425 pieces per reel.
