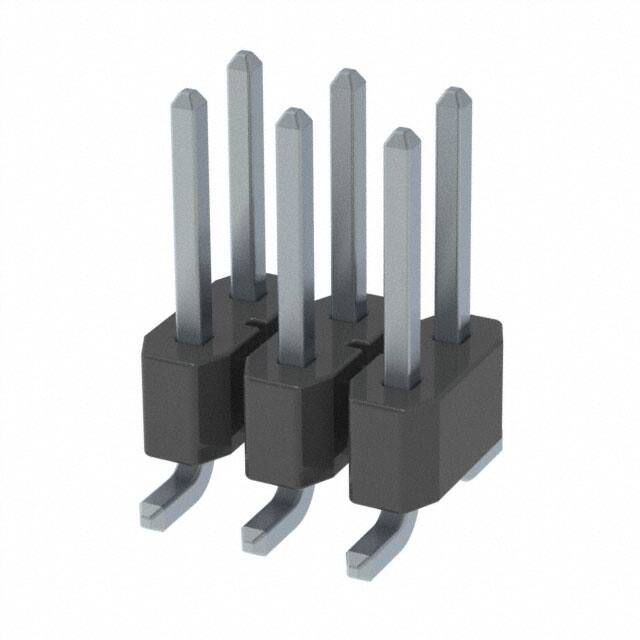

TSM-103-01-TM-DV-TR 6-position, 2-row surface mount male pin header with 2.54mm pitch and Tin plating. Unshrouded, push-pull fastening, rated -55°C to +105°C.
Mfr Part #:

TSM-103-01-TM-DV-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
6-position, 2-row surface mount male pin header with 2.54mm pitch and Tin plating. Unshrouded, push-pull fastening, rated -55°C to +105°C.
✓ Total Stock: 90 pcs
$ Price Range: $0.40 - $0.79

TSM-103-01-TM-DV-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-103-01-TM-DV-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TSM-103-01-TM-DV-TR Description

Short technical summary and product information.

The Samtec TSM-103-01-TM-DV-TR is a 6-position, 2-row surface mount male pin header from the TSM series. Designed for board-to-board or cable applications, it features a 2.54mm (0.100") pitch and row spacing. The unshrouded header uses a push-pull fastening type and has a black Liquid Crystal Polymer (LCP) insulator rated UL94 V-0. Tin-plated phosphor bronze contacts provide reliable solder termination. With an operating temperature range of -55°C to +105°C and a post height of 5.84mm, this header is suitable for a wide range of interconnect needs. It is part of Samtec's Extended Life Product line, passing 10-year Mixed Flowing Gas testing and achieving high mating cycles. The tape and reel packaging facilitates automated assembly. The datasheet confirms lead-free solderability.

TSM-103-01-TM-DV-TR Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec .100" TSM Series Surface Mount Terminal Strip, 6 Positions, 2 Rows, 2.54mm Pitch, Tin Plating, Tape & Reel
Subcategory: Unshrouded Surface Mount Header

TSM-103-01-TM-DV-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-103-01-TM-DV-TR Estimated Pricing

Qty Low High
1+ $0.79 $0.79
50+ $0.78 $0.78
100+ $0.48 $0.48
225+ $0.48 $0.48
450+ $0.47 $0.47
900+ $0.43 $0.43
1,800+ $0.42 $0.42
4,950+ $0.41 $0.41
9,900+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-103-01-TM-DV-TR Features

  • 6-pin 2-row surface mount header.
  • 2.54mm pitch and row spacing.
  • Tin-plated phosphor bronze contacts.
  • UL94 V-0 black LCP insulator.
  • Operating range -55°C to +105°C.

TSM-103-01-TM-DV-TR Applications

  • Used in board-to-board interconnects.
  • Suitable for cable-to-board systems.
  • Ideal for automated SMT assembly.
  • Pairs with Samtec socket connectors.

TSM-103-01-TM-DV-TR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the TSM-103-01-TM-DV-TR?

The pitch is 2.54 mm (0.100").

How many positions does this header have?

It has 6 positions arranged in 2 rows.

What is the mounting type?

Surface mount (SMD) with solder termination.

What is the operating temperature range?

-55°C to +105°C.

What material is the contact?

Phosphor bronze with Tin plating.
