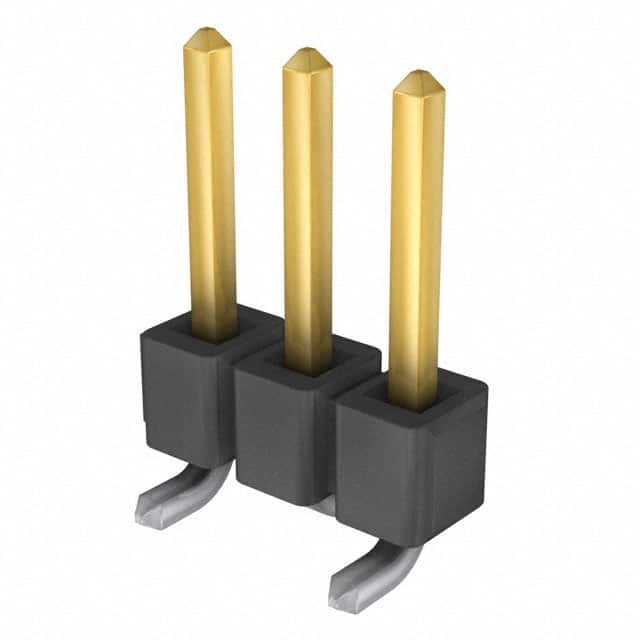

TSM-103-01-S-SV 3-position, single row, 2.54mm pitch surface mount header by Samtec, part of the TSM series. Features gold-plated contacts, black LCP insulator, and vertical orientation.
Mfr Part #:

TSM-103-01-S-SV

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
3-position, single row, 2.54mm pitch surface mount header by Samtec, part of the TSM series. Features gold-plated contacts, black LCP insulator, and vertical orientation.
✓ Total Stock: 316 pcs
$ Price Range: $0.35 - $0.69

TSM-103-01-S-SV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
316 pcs
On Request
316 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-103-01-S-SV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Data Rate
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TSM-103-01-S-SV Description

Short technical summary and product information.

The Samtec TSM-103-01-S-SV is a surface mount pin header with 3 positions in a single row on 2.54mm (0.100") pitch. It features a vertical orientation and unshrouded design with push-pull fastening. The contact material is phosphor bronze with 30µ" gold plating on the mating surface and matte tin on the termination tails, over a 50µ" nickel underplate. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0. This part is lead-free solderable and operates from -55°C to 125°C (with gold plating). Current rating per pin is 4.7A (mated with SSW) up to 5.4A (mated with SSM), with voltage rating up to 495 VAC. The TSM series is qualified for severe environment testing (SET) and meets MIL-DTL-55302 testing. The post height is 5.84mm (0.230") for the -01 lead style. This connector is suitable for board-to-board or cable applications and supports data rates up to 8 Gbps.

TSM-103-01-S-SV Quick Information

Product Type: Header, Male Pins
Series: TSM
Canonical Name: Samtec TSM-103-01-S-SV 3-Pin Single Row SMT Header
Subcategory: SMT Header

TSM-103-01-S-SV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

TSM-103-01-S-SV Estimated Pricing

Qty Low High
1+ $0.69 $0.69
100+ $0.61 $0.61
500+ $0.49 $0.49
1,000+ $0.45 $0.45
2,500+ $0.45 $0.45
5,000+ $0.43 $0.43
10,000+ $0.43 $0.43
25,000+ $0.35 $0.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-103-01-S-SV Features

  • 3-position, single row SMT header.
  • 2.54mm (0.100") pitch for standard spacing.
  • Gold plating on mating surface for reliability.
  • Rated up to 5.4A per pin (mated with SSM).
  • Operating temperature range -55°C to 125°C.

TSM-103-01-S-SV Applications

  • Ideal for board-to-board connections.
  • Used in cable-to-board applications.
  • Suitable for severe environment testing (SET).
  • Compatible with Samtec SSW, SSM, BCS sockets.

TSM-103-01-S-SV FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-103-01-S-SV have?

3 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating per pin?

Depends on mating connector: 4.7A (mated with SSW), 5.4A (SSM), 4.1A (HLE), 5.0A (BCS).

What is the voltage rating?

495 VAC when mated with BCS, 475 VAC when mated with SSM.

What is the mounting type?

Surface mount (SMD).

What is the operating temperature range?

-55°C to 125°C with gold plating (tin plating range is -55°C to 105°C).

What is the contact plating?

30µ" gold on the mating surface and matte tin on the termination tails.
