TSM-103-01-L-DH-A The Samtec Inc. TSM-103-01-L-DH-A is a 6-position, 2-row surface mount right angle header with a 2.54mm pitch. It is constructed with Liquid Crystal Polymer insulation and Phosphor Bronze terminals.
Mfr Part #:

TSM-103-01-L-DH-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. TSM-103-01-L-DH-A is a 6-position, 2-row surface mount right angle header with a 2.54mm pitch. It is constructed with Liquid Crystal Polymer insulation and Phosphor Bronze terminals.
✓ Total Stock: 334 pcs
$ Price Range: $0.77

TSM-103-01-L-DH-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
334 pcs
On Request
334 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-103-01-L-DH-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Insulator Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TSM-103-01-L-DH-A Description

Short technical summary and product information.

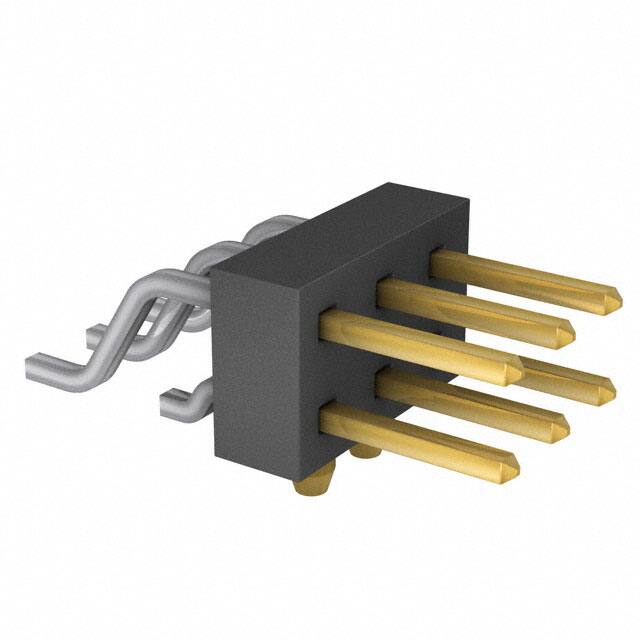

The Samtec Inc. TSM-103-01-L-DH-A is a male pin header designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch and a 2-row configuration, accommodating 6 positions. The header is surface mountable and designed for right-angle orientation.



Constructed with Black Liquid Crystal Polymer (LCP) insulation and Phosphor Bronze terminals, this header is rated for an operating temperature range of -55°C to +125°C. The contact finish is Tin, with a plating thickness of 10.0µin (0.25µm). It is lead-free solderable and has a material flammability rating of UL94 V-0.



This unshrouded header includes a board guide feature and a push-pull fastening type. The insulation height is 6.10mm (0.240") and the contact length is 5.84mm (0.230"). The current rating per pin is 5.4A when mated with SSM, and the voltage rating is 495 VAC when mated with BCS.

TSM-103-01-L-DH-A Quick Information

Product Type: Header
Series: TSM
Canonical Name: Samtec Inc. TSM Series Surface Mount Right Angle Header, 6 Positions, 2 Rows, 2.54mm Pitch
Subcategory: Male Pin Header

TSM-103-01-L-DH-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TSM-103-01-L-DH-A Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSM-103-01-L-DH-A Features

  • 6-position, 2-row header configuration.
  • 2.54mm pitch for compact designs.
  • Surface mount right angle mounting.
  • Operating temperature range: -55°C to 125°C.
  • Liquid Crystal Polymer insulator material.

TSM-103-01-L-DH-A Applications

  • Suitable for board-to-board connections.
  • Ideal for cable assembly applications.
  • Used in applications requiring right-angle mounting.
  • Designed for wide temperature environments.

TSM-103-01-L-DH-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TSM-103-01-L-DH-A have?

6 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating per pin?

5.4A per pin.

What is the voltage rating?

495 VAC.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-55°C to 125°C.

What is the insulator material?

Liquid Crystal Polymer (LCP).
