| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,330 pcs
|
10330 pcs | On Request | 1 | On Request | On Request | 638 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish - Termination | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact System | |
| Contact Type | |
| Current Rating (Mated with SSM) | |
| Durability (Mating Cycles) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Coplanarity | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Material Flammability Rating | |
| Mating Connectors | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Packaging Type | |
| Performance | |
| Pitch | |
| Row Spacing | |
| SET Qualified | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| voltage_rating (Nominal @ Mated with BCS connector) | |
| voltage_rating (Nominal @ Mated with SSM connector) |

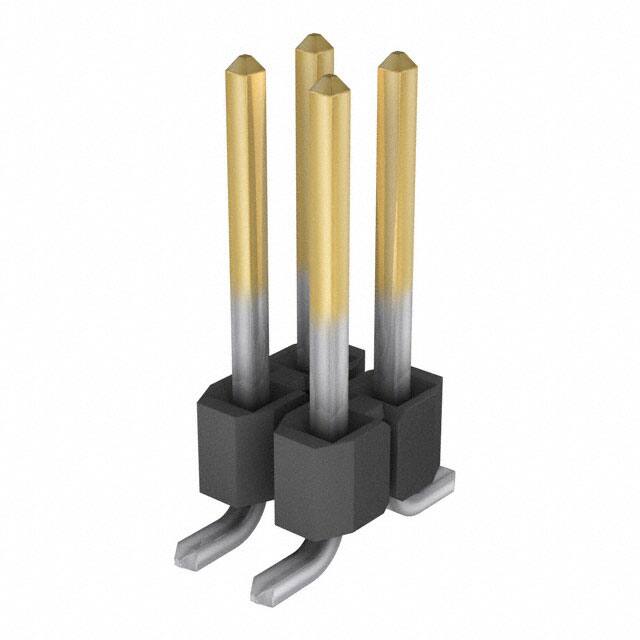

The Samtec TSM-102-02-S-DV is a surface mount strip header from the TSM series. It features 4 positions arranged in 2 rows at a 2.54mm (0.100in) pitch, with a vertical orientation. The unshrouded header uses 0.025in square phosphor bronze male pins with a 30µin gold plating on the mating post and matte tin on the termination tail. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This connector is rated for up to 8 Gbps performance, with a current rating of 5.4A per pin when mated with an SSM socket, and voltage ratings of 475 VAC (with SSM) or 495 VAC (with BCS). The operating temperature range is -55°C to +125°C for gold-plated versions. It is lead-free solderable and qualified for Severe Environment Testing (SET), aligning with MIL-DTL-55302.
The header is designed for surface mount soldering and is packaged in bulk. It mates with a variety of Samtec sockets including SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, and HLE. The post height is 8.13mm (0.320in), which is optimized for mating with the SSM-DH socket. The product is an Extended Life Product (ELP) with 250 to 2,500 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.86 | $0.86 |
| 50+ | $0.72 | $0.72 |
| 100+ | $0.68 | $0.68 |
| 500+ | $0.50 | $0.50 |
| 1,000+ | $0.47 | $0.47 |
| 2,000+ | $0.44 | $0.44 |
| 5,000+ | $0.35 | $0.35 |
| 10,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm (0.100in).
5.4A per pin when mated with SSM socket.
475 VAC with SSM, 495 VAC with BCS.
Surface Mount.
-55°C to +125°C with gold plating.
30µin Gold on mating post, Matte Tin on termination tail.
