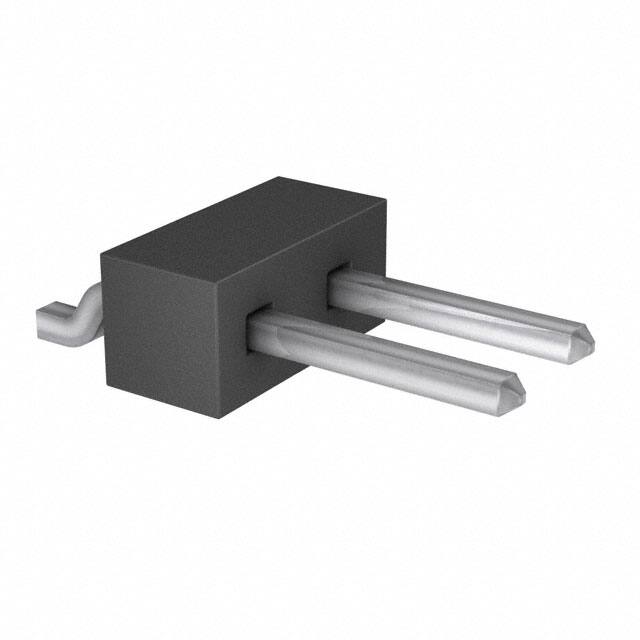

The Samtec TSM-102-01-T-SH is a 2-position, single-row, unshrouded header from the TSM series. It features a 2.54mm (0.100") pitch and is designed for surface mount, right angle termination. The connector uses square, tin-plated phosphor bronze male pins and a black liquid crystal polymer (LCP) insulator with a UL94 V-0 flammability rating.
This header is rated for operating temperatures from -55°C to +105°C. Current ratings vary depending on the mating socket: 4.7A when mated with SSW, 5.4A with SSM, 4.1A with HLE, and 5.0A with BCS (2 positions powered). Voltage ratings are 495 VAC when mated with BCS and 475 VAC when mated with SSM. The connector supports signal rates up to 8 Gbps.
The part is packaged in a tube with a standard quantity of 115 pieces. It is an Extended Life Product (ELP) designed for high mating cycles and is Severe Environment Testing (SET) qualified, meeting or exceeding MIL-DTL-55302 testing requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
| 50+ | $0.18 | $0.18 |
| 115+ | $0.17 | $0.17 |
| 575+ | $0.14 | $0.14 |
| 5,060+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TSM-102-01-T-SH has 2 positions in a single row.
The pitch is 2.54mm (0.100").
Current rating depends on the mating socket: 4.7A with SSW, 5.4A with SSM, 4.1A with HLE, and 5.0A with BCS (2 positions powered).
Voltage rating is 495 VAC when mated with BCS and 475 VAC when mated with SSM.
The mounting type is surface mount, right angle.
The operating temperature range is -55°C to +105°C.
The TSM-102-01-T-SH supports signal rates up to 8 Gbps.
