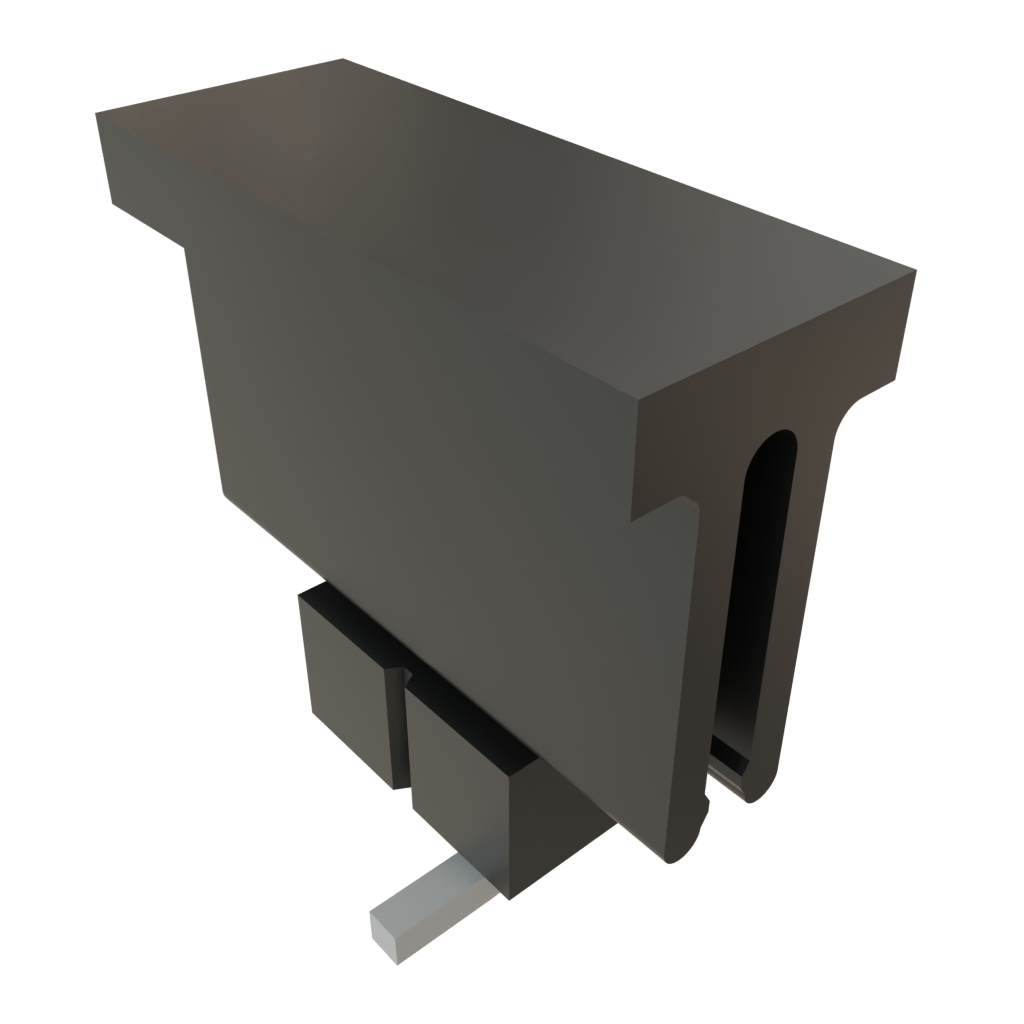

TSM-102-01-L-SV-P-TR The Samtec TSM-102-01-L-SV-P-TR is a 2-position SMT strip header with a 2.54mm pitch. It offers high mating cycles and supports up to 8 Gbps performance.
Mfr Part #:

TSM-102-01-L-SV-P-TR

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec TSM-102-01-L-SV-P-TR is a 2-position SMT strip header with a 2.54mm pitch. It offers high mating cycles and supports up to 8 Gbps performance.
✓ Total Stock: 2,600 pcs

TSM-102-01-L-SV-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
2,600 pcs
On Request
2600 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSM-102-01-L-SV-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mating Cycles
Mounting Type
Pitch
SVHC Present
Tape & Reel
Termination Style
View Similar Products (0)

TSM-102-01-L-SV-P-TR Description

Short technical summary and product information.

This Samtec TSM-102-01-L-SV-P-TR is a surface mount strip header designed for high-density applications. It features a 2.54mm (0.100 inch) pitch and a 0.635mm (0.025 inch) square post contact system.



This header is part of the TSM series, known for its Extended Life Product designation, passing 10-year Mixed Flowing Gas (MFG) testing and achieving high mating cycles ranging from 250 to 2,500. It supports performance up to 8 Gbps and meets or exceeds MIL-DTL-55302 testing standards.



The TSM-102-01-L-SV-P-TR is designed for surface mount applications, facilitating processing. It comes in a Tape & Reel package with 325 units per reel. The vertical orientation and PnP Pad design are optimized for automated assembly.



This component is suitable for various applications requiring reliable interconnects, especially where high mating cycles and performance are critical. Its robust design and compliance with stringent testing standards make it a dependable choice for demanding environments.

TSM-102-01-L-SV-P-TR Quick Information

Product Type: Strip Header
Series: TSM
Canonical Name: Samtec TSM Series SMT Strip Header, 2 Position
Subcategory: Strip Header

TSM-102-01-L-SV-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TSM-102-01-L-SV-P-TR Features

  • 2.54mm pitch SMT strip header
  • 2 positions, 1 row, vertical orientation
  • High mating cycles (250 to 2,500)
  • Supports up to 8 Gbps performance
  • Tape & Reel packaging, 325 parts

TSM-102-01-L-SV-P-TR Applications

  • High-speed board-to-board connections
  • Automotive applications
  • Harsh environment applications
  • High mating cycle requirements

TSM-102-01-L-SV-P-TR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the Samtec TSM-102-01-L-SV-P-TR header?

The pitch of the Samtec TSM-102-01-L-SV-P-TR header is 2.54 mm.

How many positions does the TSM-102-01-L-SV-P-TR have?

The TSM-102-01-L-SV-P-TR has 2 positions.

What is the performance capability of this Samtec header?

This Samtec header supports performance up to 8 Gbps.

What type of mounting does the TSM-102-01-L-SV-P-TR use?

The TSM-102-01-L-SV-P-TR uses surface mount termination.

How many units are in a Tape & Reel package for this part?

A Tape & Reel package for the TSM-102-01-L-SV-P-TR contains 325 units.
