| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
915 pcs
|
915 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Plating | |
| Mating Cycles | |
| Mounting Type | |
| Orientation | |
| Pitch | |
| SVHC Present | |
| Termination |

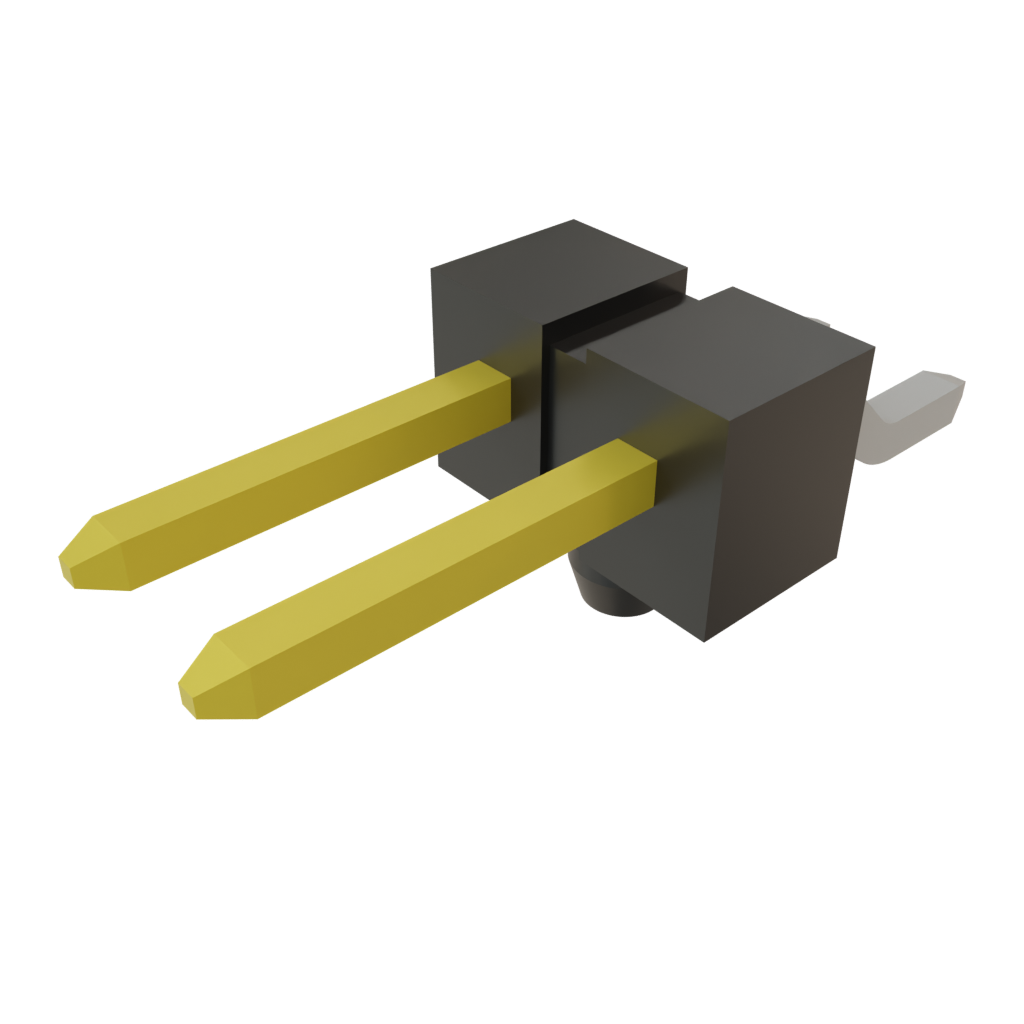

The SMT TSM-102-01-L-SH-A is a horizontal strip header designed for surface mount applications. It features a 2.54mm (0.100 inch) pitch and a 0.635mm (0.025 inch) square post contact system.
This header supports high-speed data transfer with performance up to 8 Gbps. It is constructed with 10µin gold/tin plating for reliable connections and has a post height of 0.230 inches. The TSM series is an Extended Life Product, designed for high mating cycles (up to 2,500) and meets or exceeds MIL-DTL-55302 testing standards.
The component is suitable for various applications requiring robust interconnects. It is supplied in Tape & Reel packaging, with 425 parts per reel, facilitating automated assembly processes.
The pitch of the SMT TSM-102-01-L-SH-A strip header is 2.54 mm.
The TSM-102-01-L-SH-A header uses surface mount termination.
The TSM-102-01-L-SH-A connector offers performance up to 8 Gbps.
The TSM-102-01-L-SH-A can handle up to 2,500 mating cycles.
The contact plating on the TSM-102-01-L-SH-A header is 10µin Gold/Tin.
The TSM-102-01-L-SH-A is supplied in Tape & Reel packaging with 425 parts per package.
