| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,120 pcs
|
9120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Current | |
| Digital Output | |
| Dynamic Range | |
| Integration Time | |
| Logic Interface | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Power-Down Current | |
| Proximity Detection | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |

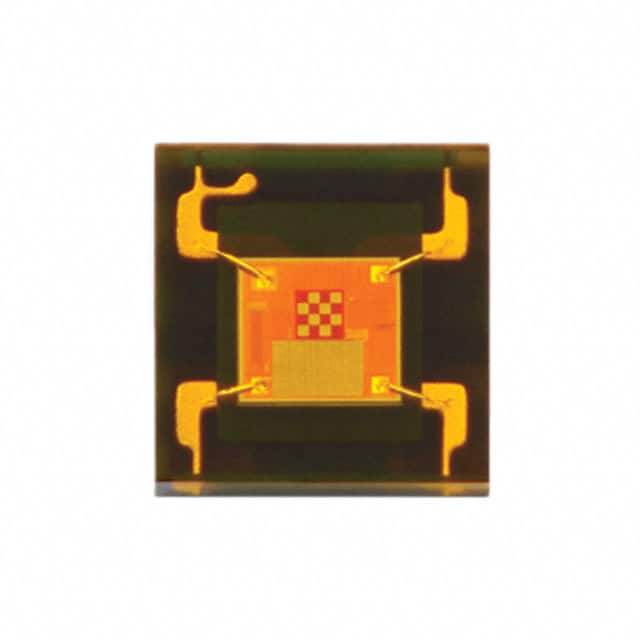

The Osram TSL45315CL is a digital ambient light sensor designed to approximate human eye response across diverse lighting conditions. It features a 16-bit digital output via an I2C bus interface, providing direct lux readings.
This sensor boasts a wide dynamic range, measuring from 3 lux to 220,000 lux, making it suitable for applications exposed to direct sunlight. It offers three user-selectable integration times: 100 ms, 200 ms, and 400 ms, allowing for flexibility in measurement. The device operates with a supply voltage of 2.3V to 3.3V and includes a 1.8V logic interface.
Key features include rejection of 50 Hz/60 Hz lighting ripple and low active current consumption. The TSL45315CL is housed in an ultra-small 2 mm x 2 mm ChipLED package and is designed for surface mounting.
Applications for the TSL45315CL include outdoor lighting control, display backlight control for devices like cell phones and notebooks, and solid-state lighting for daylight harvesting to maximize energy conservation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the TSL45315CL is between 2.3V and 3.3V.
The TSL45315CL is available in a 4-SMD, No Lead package, specifically a 4-ChipLED supplier package.
The TSL45315CL has an operating temperature range of -15°C to 70°C.
The TSL45315CL ambient light sensor features an I2C output type.
The TSL45315CL sensor has a dynamic range from 3 lux to 220,000 lux.
The TSL45315CL offers three user-selectable integration times: 100 ms, 200 ms, and 400 ms.
