| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

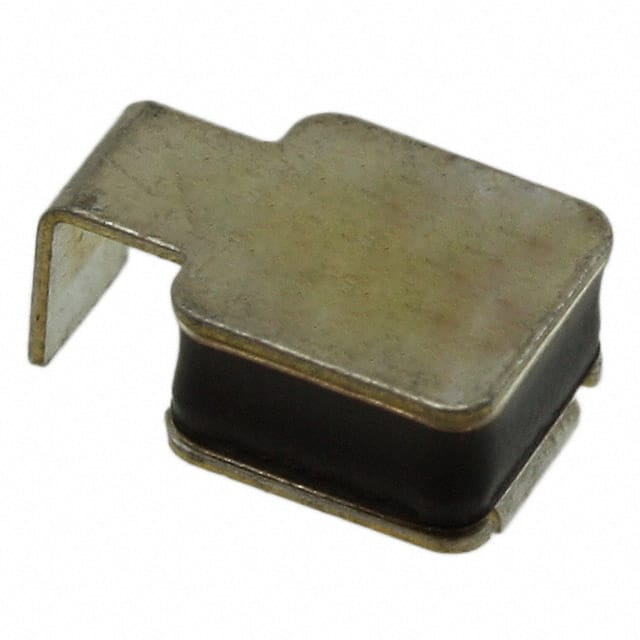

The Littelfuse TSL250-080F-2 is a PolySwitch PTC resettable overcurrent protection device designed for surface mount applications. It is rated for 80V DC operating voltage with a hold current of 80mA at 20°C (derated to 44mA at 70°C) and an interrupt current of 3A RMS. Tripped state power dissipation is 1.2W typical.
Resistance characteristics include an initial resistance range of 5Ω to 11Ω and a post-trip maximum resistance of 20Ω measured one hour after trip. Time to trip is typically 0.8 seconds at 1A and 20°C. The device also meets lightning withstand requirements per Telcordia GR1089 intrabuilding (2 hits, 2/10µs, 1500V, 100A).
The TSL250-080F-2 is housed in a 2-SMD package with maximum dimensions of 7.9mm x 5.3mm x 3.7mm. Terminals are tin plated brass. Operating temperature range is -40°C to 85°C. The device is RoHS compliant, Pb-Free, and ELV compliant.
This polymeric PTC fuse is suitable for overcurrent protection in telecom, networking, industrial control, and general electronics where resettable protection is required. Its compact surface mount package enables automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.11 | $1.11 |
| 10+ | $0.98 | $0.98 |
| 50+ | $0.82 | $0.82 |
| 100+ | $0.75 | $0.75 |
| 250+ | $0.68 | $0.68 |
| 500+ | $0.64 | $0.64 |
| 1,500+ | $0.49 | $0.49 |
| 3,000+ | $0.45 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 mA at 20°C, derated to 44 mA at 70°C.
80 V DC (fault voltage 250 V RMS).
3 A RMS.
Typically 0.8 seconds at 20°C.
Surface mount 2-SMD package.
-40°C to 85°C.
Yes, RoHS compliant, Pb-Free, and ELV compliant.
