Mfr Part #:

TSL237T

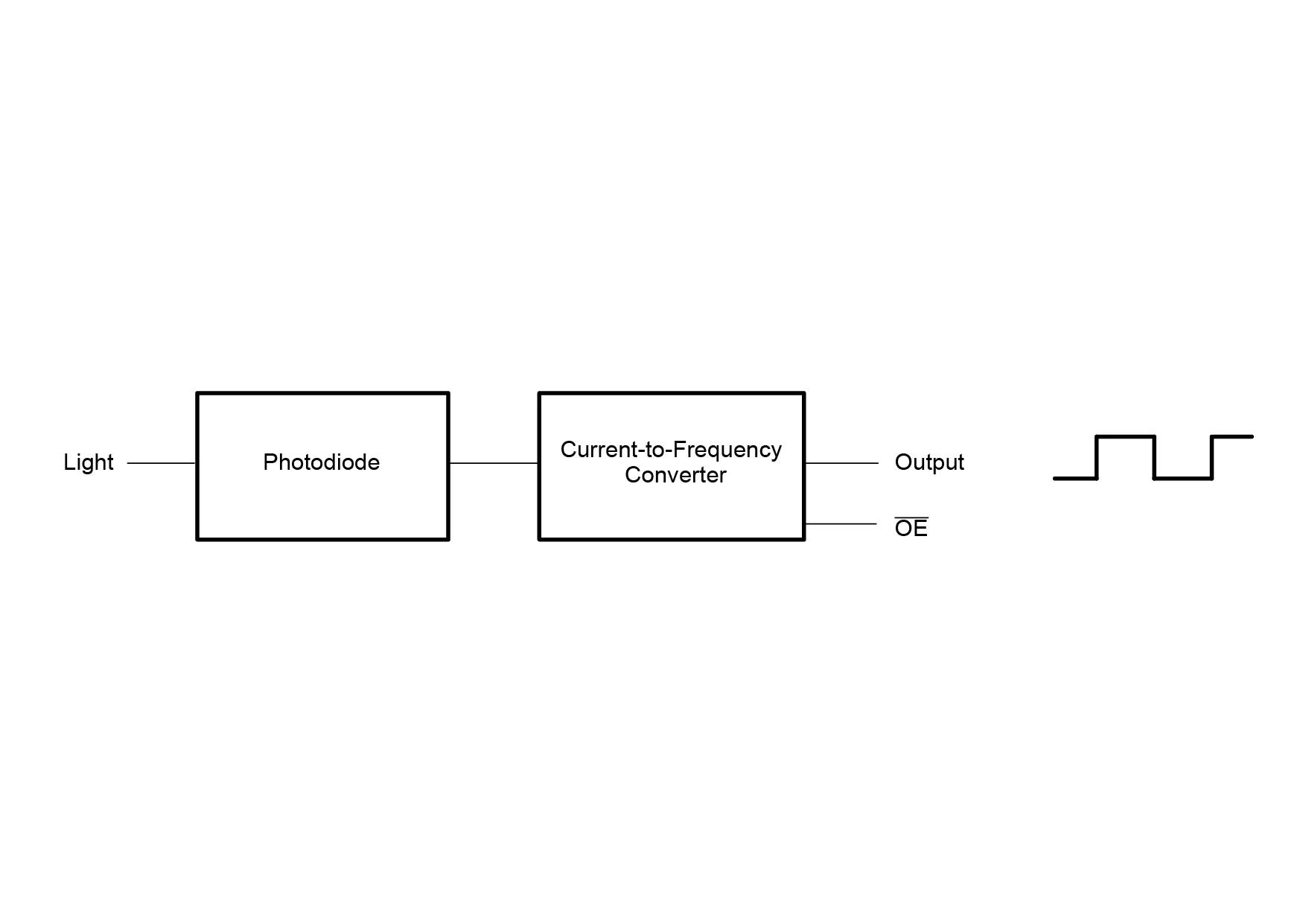

The TSL237T from ams OSRAM is a high-sensitivity light-to-frequency converter. It integrates a photodiode and a current-to-frequency converter on a single CMOS IC.

✓ Total Stock: 2,300 pcs

TSL237T Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,300 pcs On Request	2300 pcs	On Request	1	On Request	On Request	18+	On Request	On Request

TSL237T Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Austria Micro Systems ( AMS)
Number of Pins	4-Lead
Operating Temperature	-40°C to 85°C
Package / Case	SMD
SVHC Present	Not Present
Supply Voltage	2.7V to 5.5V
Temperature Coefficient	200ppm/°C

View Similar Products (0)

TSL237T Description

Short technical summary and product information.

The TSL237T is a high-sensitivity light-to-frequency converter manufactured by ams OSRAM. This monolithic CMOS integrated circuit combines a silicon photodiode with a current-to-frequency converter, producing a square wave output directly proportional to light intensity. Its digital output allows for straightforward interfacing with microcontrollers.

Key electrical specifications include a single supply operation range of 2.7V to 5.5V and a wide input dynamic range of 5M:1. The device offers a stable temperature coefficient of 200ppm/°C and operates over a spectral range of 320nm to 1050nm, with temperature compensation for the ultraviolet-to-visible light range (320nm to 700nm).

Designed for low light level operation, the TSL237T features a low dark frequency of 0.1 Hz typical. It exhibits high irradiance responsivity of 1.2kHz/(μW/cm²) at λp = 640nm. The device is characterized for operation across a temperature range of -40°C to 85°C.

The TSL237T is supplied in a compact 4-lead surface-mount package (SMD) measuring 2.6mm x 3.8mm, simplifying board space requirements and design complexity. The output enable (OE) function places the output in a high-impedance state, facilitating multiple unit sharing of a microcontroller input line.

TSL237T Quick Information

Product Type: Light-to-Frequency Converter

Series: TSL237

Canonical Name: TSL237T Light-to-Frequency Converter

Subcategory: Light-to-Frequency Converter

TSL237T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TSL237T Features

High-sensitivity light-to-frequency conversion.
Single supply operation from 2.7V to 5.5V.
Wide 5M:1 input dynamic range.
Stable 200ppm/°C temperature coefficient.
Compact 2.6mm x 3.8mm 4-lead SMD package.

TSL237T Applications

Direct interface to microcontrollers.
Low light level detection applications.
High-resolution light intensity measurement.
Designs requiring reduced board space.

TSL237T FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range for the TSL237T?

The TSL237T operates on a single supply voltage ranging from 2.7V to 5.5V.

What is the temperature coefficient of the TSL237T?

The TSL237T has a stable temperature coefficient of 200ppm/°C.

What is the input dynamic range of the TSL237T?

The TSL237T offers an input dynamic range of 5M:1.

What is the dark frequency of the TSL237T at 50°C?

The dark frequency of the TSL237T at 50°C is less than 2Hz.

What is the spectral response range of the TSL237T?

The TSL237T responds to light in the range of 320nm to 1050nm.

What is the operating temperature range for the TSL237T?

The TSL237T is characterized for operation over the temperature range of -40°C to 85°C.

What type of package is the TSL237T supplied in?

The TSL237T is supplied in a compact 4-lead surface-mount (SMD) package measuring 2.6mm x 3.8mm.
