| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
950 pcs
|
950 pcs | On Request | 1 | On Request | On Request | 1148/1828 | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Diameter | |
| Frequency | |
| Height | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tape & Reel | |
| Tolerance |

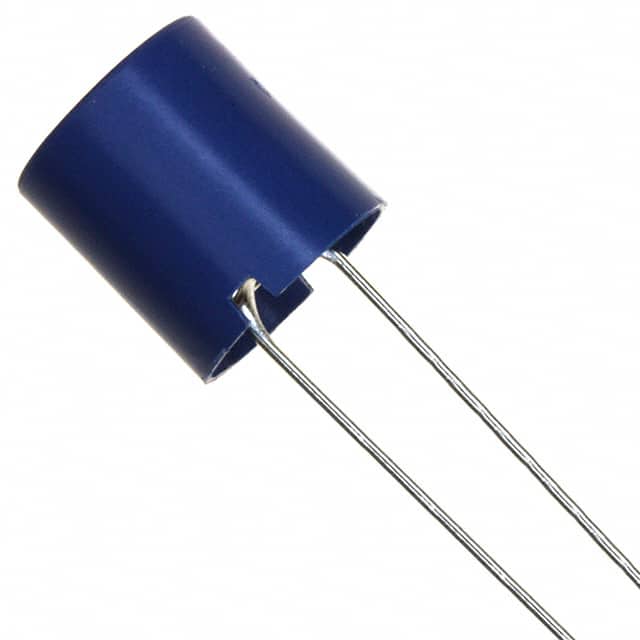

The TDK Corporation TSL1112RA-150M3R4-PF is a fixed inductor from the TSL series, designed for power circuits. It offers an inductance of 15µH with a tolerance of ±20% and a maximum DC resistance of 29mOhm.
This unshielded inductor has a current rating of 3.4A and a saturation current of 4.2A. It operates within a temperature range of -20°C to 85°C and has a frequency rating of 12MHz, with a Q factor of 20 at 2.52MHz.
The component is housed in a radial, vertical cylinder package with through-hole mounting. Its dimensions include a height of 12.50mm and a diameter of 11.20mm. The product is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 15µH.
The current rating is 3.4A.
The maximum DC resistance is 29mOhm.
The operating temperature range is -20°C to 85°C.
It is mounted using the through-hole method.
