| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
116,000 pcs
|
116000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
15,600 pcs
|
15600 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Angle of Half Intensity | |
| Current | |
| Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Peak Forward Current | |
| Power Dissipation | |
| Radiant Intensity (Ie) Min @ If | |
| Reverse Voltage | |
| Rise Time | |
| Storage Temperature | |
| Surge Forward Current | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

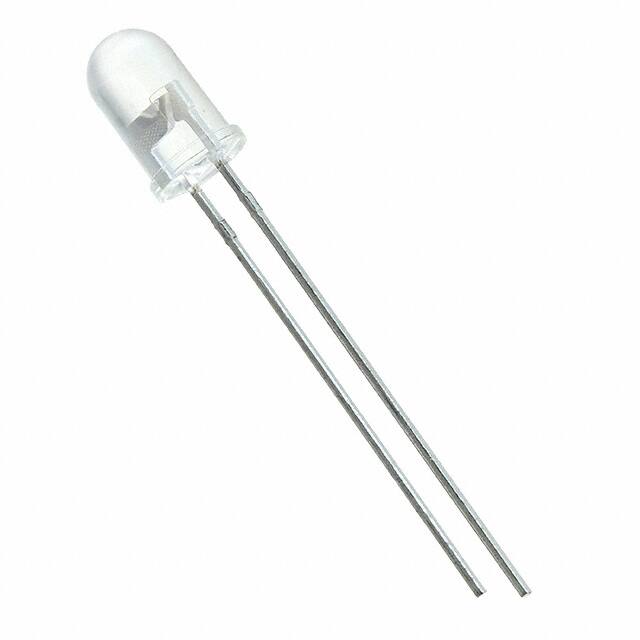

The Vishay Dale TSHG6410 is an infrared emitting diode with a peak wavelength of 850 nm, based on surface emitter chip technology. It is molded in a clear, untinted plastic package and designed for high radiant power and high speed.
Key electrical specifications include a nominal forward current of 100mA and a forward voltage of 1.5V. The radiant intensity is a minimum of 45mW/sr at 100mA, with an angle of half intensity of ±15° and a viewing angle of 36°. The diode has a rise time of 10 ns.
Absolute maximum ratings include a reverse voltage of 5V, a peak forward current of 200mA, and a surge forward current of 1A. Power dissipation is limited to 180mW at 25°C ambient temperature. The operating temperature range is -40°C to 85°C, with a storage temperature range of -40°C to 100°C.
This component is suitable for high-speed remote control and free-air data transmission systems requiring high modulation frequencies or high data transmission rates, including systems compliant with IrDA requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak wavelength is 850 nm.
The nominal forward current is 100 mA.
The nominal forward voltage is 1.5 V.
The minimum radiant intensity is 45 mW/sr at 100mA.
The operating temperature range is -40°C to 85°C.
The TSHG6410 is mounted using the through-hole method.
