| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Current | |
| Forward Voltage | |
| Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Peak Forward Current | |
| Power Dissipation | |
| Radiant Intensity (Ie) Min @ If | |
| Reverse Voltage | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

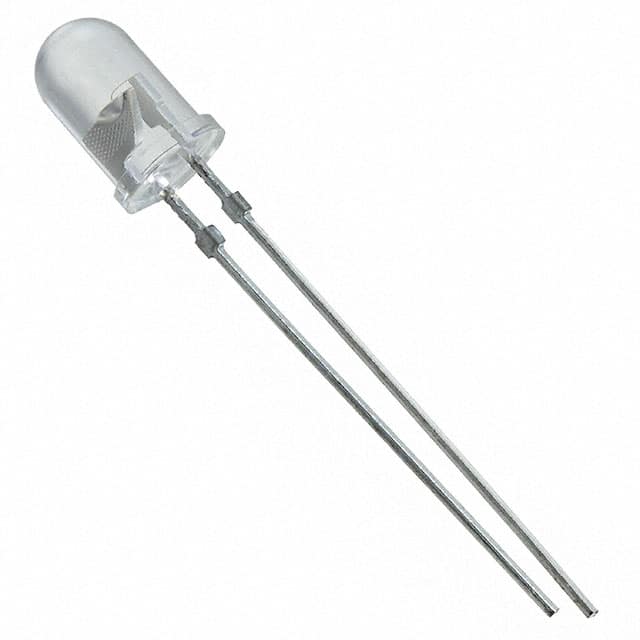

The Vishay Dale TSHG5210 is an infrared emitting diode utilizing surface emitter chip technology. It operates at a peak wavelength of 850 nm and is suitable for high-speed remote control and free-air data transmission systems requiring high modulation frequencies or data transmission rates.
This diode features a forward current of 100mA and a typical forward voltage of 1.5V. Its radiant intensity is a minimum of 140mW/sr at 100mA, with an angle of half intensity of ±10°. The operating temperature range is -40°C to 85°C.
Packaged in a clear, untinted T-1¾ plastic radial package, the TSHG5210 is designed for through-hole mounting. It is also suitable for high pulse current operation and offers good spectral matching with silicon photodetectors.
Applications include transmission systems according to IrDA requirements and carrier frequency-based systems like ASK/FSK coded transmissions at 450 kHz or 1.3 MHz.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak wavelength is 850nm.
The forward current is 100mA.
The typical forward voltage is 1.5V.
The operating temperature range is -40°C to 85°C.
The TSHG5210 is a through-hole mounted component.
The package type is T-1¾ radial.
The minimum radiant intensity is 140mW/sr at 100mA.
