TSE2004GB2C0NCG8
Renesas
The Renesas TSE2004GB2C0NCG8 is a temperature sensor designed for DDR4 applications. It offers precise temperature monitoring with an operating voltage range of 2.2V to 3.6V.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Function | |
| Mounting Type | |
| Operating Temperature | |
| Output Alarm | |
| Output Fan | |
| Output Type | |
| Sensor Type | |
| Supplier Device Package | |
| Supplier Package | |
| Topology | |
| Voltage |
The Renesas TSE2004GB2B0NCG8 is an internal temperature sensor specifically designed for DDR4 memory systems. This device provides accurate temperature monitoring with a typical accuracy of ±2°C over an operating temperature range of -40°C to 125°C.
Featuring an I²C/SMBus output interface, the TSE2004GB2B0NCG8 integrates easily into system designs. Its topology includes Sigma Delta ADC, control logic, and a register bank, enabling efficient temperature data acquisition and management. The sensor operates within a voltage range of 2.2V to 3.6V.

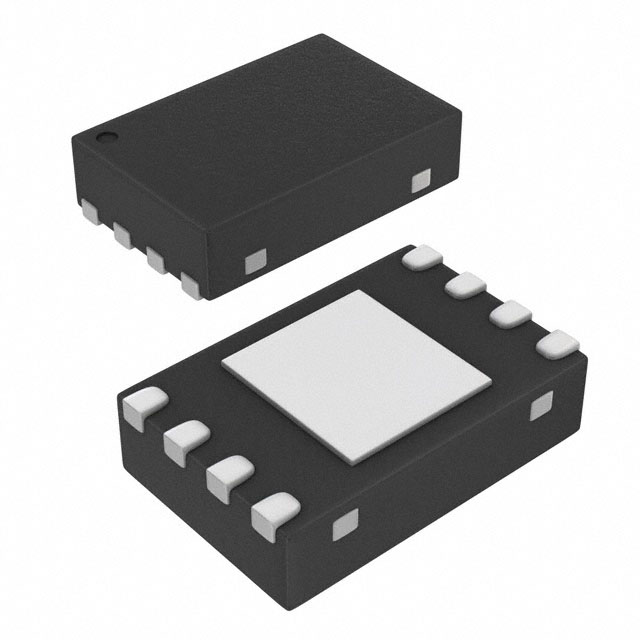

Packaged in an 8-WFDFN exposed pad (also referred to as 8-VFQFPN 2x3), this component is designed for surface mount applications. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating suitability for a wide range of manufacturing environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.06 | $2.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 125°C.
The accuracy is ±2°C.
The operating voltage is between 2.2V and 3.6V.
It uses an I²C/SMBus output interface.
The package is 8-WFDFN Exposed Pad.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
