| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,142 pcs
|
5142 pcs | On Request | 1 | On Request | On Request | 07+PB | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Resolution | |
| Resolution (Bits) | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Tape & Reel | |
| Touchscreen | |
| Voltage | |
| Voltage Reference |
The Texas Instruments TSC2005IYZLR is a highly integrated, ultralow-power touch screen controller designed for power-sensitive handheld applications. It features a 12-bit analog-to-digital converter with a high-speed SPI-compatible interface, enabling efficient communication with host processors.
This controller supports a wide operating voltage range from 1.6V to 3.6V, making it suitable for single-cell battery-powered devices. It offers register-based programmability for resolution (10-bit or 12-bit), sampling rates, and system timing. Additional features include on-chip temperature and touch pressure measurement, as well as an auto power-down control to conserve energy.

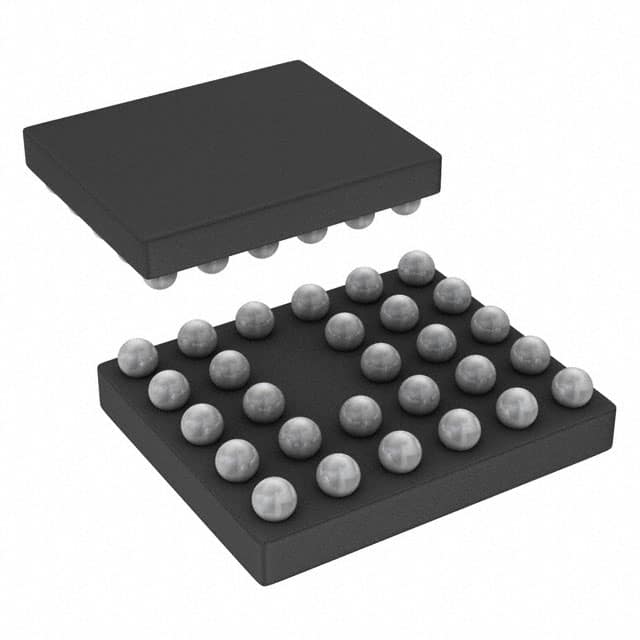

The TSC2005IYZLR is housed in a compact 28-DSBGA package, suitable for surface mount applications. Its operating temperature range is -40°C to 85°C. The device is designed for applications such as personal digital assistants, cellular phones, portable instruments, and point-of-sale terminals where low power consumption and precise touch input are critical.
Key specifications include a 12-bit resolution, SPI interface, and a supply voltage range of 1.6V to 3.6V. The package is a 28-DSBGA, and it operates within a temperature range of -40°C to 85°C. The part is supplied on a tape and reel with 3000 units per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.6V to 3.6V.
The operating temperature range is -40°C to 85°C.
The resolution is 12-Bit.
It uses an SPI interface.
It supports 4 Wire Resistive touchscreens.
The package is 28-DSBGA.
The standard package quantity is 3000 units.
