TSC2003IZQCR The Texas Instruments TSC2003IZQCR is a 12-bit touch screen controller featuring an I2C interface and support for 4-wire resistive touchscreens. It operates within a supply voltage range of 2.5V to 5.25V.
Mfr Part #:

TSC2003IZQCR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TSC2003IZQCR is a 12-bit touch screen controller featuring an I2C interface and support for 4-wire resistive touchscreens. It operates within a supply voltage range of 2.5V to 5.25V.
✓ Total Stock: 58,509 pcs
$ Price Range: $2.38

TSC2003IZQCR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
31,216 pcs
On Request
31216 pcs On Request 1 On Request On Request 0727+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
24,793 pcs
On Request
24793 pcs On Request 1 On Request On Request 05+ On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TSC2003IZQCR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Interface
Lead Spacing
Mounting Type
Operating Temperature
Resolution (Bits)
Supplier Device Package
Touchscreen
Voltage
Voltage Reference
View Similar Products (0)

TSC2003IZQCR Description

Short technical summary and product information.

The TSC2003IZQCR from Texas Instruments is a versatile touch screen controller IC designed for 4-wire resistive touch applications. It offers a 12-bit resolution, providing precise touch input detection.



This controller utilizes an I²C interface for communication, making it compatible with a wide range of microcontrollers and processors. The device supports a broad operating voltage range from 2.5V to 5.25V, allowing for flexibility in system design. Its internal voltage reference simplifies external component requirements.

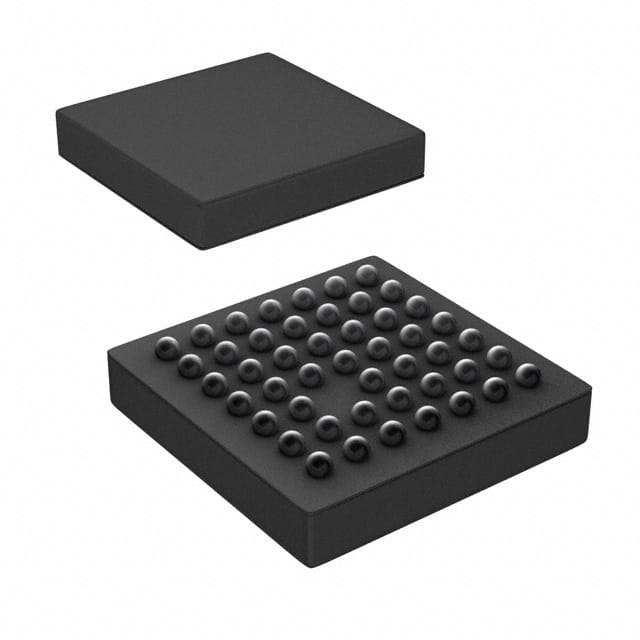

The TSC2003IZQCR is housed in a 48-VFBGA package, specifically the MICROSTAR JUNIOR (4x4) variant, and is designed for surface mount installation. It operates reliably within an ambient temperature range of -40°C to 85°C.



This component is suitable for various human-machine interface applications where touch input is required, such as industrial control panels, point-of-sale systems, and portable electronic devices.

TSC2003IZQCR Quick Information

Product Type: Touch Screen Controller
Canonical Name: TSC2003IZQCR Touch Screen Controller
Subcategory: Data Acquisition

TSC2003IZQCR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TSC2003IZQCR Estimated Pricing

Qty Low High
1+ $2.38 $2.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

TSC2003IZQCR Features

  • 12-bit resolution for precise touch detection.
  • I²C interface for easy microcontroller integration.
  • Supports 4-wire resistive touchscreens.
  • Wide operating voltage range of 2.5V to 5.25V.
  • Internal voltage reference simplifies design.

TSC2003IZQCR Applications

  • Ideal for embedded touch interfaces.
  • Suitable for industrial control panels.
  • Used in point-of-sale systems.
  • Applicable to portable electronic devices.

TSC2003IZQCR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resolution of the TSC2003IZQCR touch screen controller?

The TSC2003IZQCR offers a resolution of 12 bits.

What type of touchscreen does the TSC2003IZQCR support?

It supports 4-wire resistive touchscreens.

What is the operating voltage range for the TSC2003IZQCR?

The operating voltage range is from 2.5V to 5.25V.

What is the operating temperature range of the TSC2003IZQCR?

The operating temperature range is -40°C to 85°C.

What interface does the TSC2003IZQCR use?

The TSC2003IZQCR uses an I²C interface.

What package is the TSC2003IZQCR supplied in?

It is supplied in a 48-VFBGA package, specifically the MICROSTAR JUNIOR (4x4) variant.
