| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,259 pcs
|
7259 pcs | On Request | 1 | On Request | On Request | 99/00+ | On Request | On Request | |
|
576 pcs
|
576 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Clock Frequency | |
| Data Rate | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Number of Pins | |
| Number of Ports | |
| Storage Temperature | |
| Supply Voltage | |
| Tape & Reel |
The Texas Instruments TSB41LV03PFP is a three-port cable transceiver and arbiter designed for IEEE 1394a applications. This device fully supports the provisions of the IEEE 1394-1995 standard and the 1394a-2000 supplement, ensuring interoperability with FireWire and i.LINK implementations.
It provides three fully compliant 1394a-2000 cable ports operating at 100, 200, or 400 Megabits per second. Key features include connection debounce, arbitrated short reset, multispeed concatenation, and arbitration acceleration. The transceiver also incorporates power-down features for energy conservation in battery-powered applications, such as automatic device power down during suspend and inactive port power down.

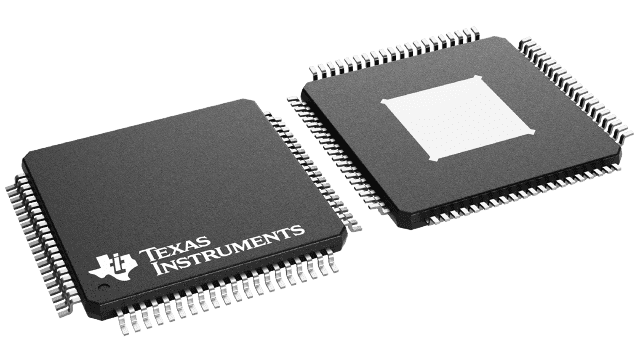

Packaged in an 80-pin HTQFP (PFP) with thermal enhancement, the TSB41LV03PFP operates over a temperature range of 0 to 70°C. It requires a single 3.3V supply and interfaces with link-layer controllers via parallel lines at 49.152 MHz. This part is noted as obsolete and a direct drop-in upgrade for TSB41LV03APFP and TSB41LV03PFP.
Fail-safe circuitry is included to sense sudden loss of power and disable ports, preventing the device from loading the TPBIAS of connected devices and blocking leakage.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TSB41LV03PFP is an IEEE 1394a 3-port cable transceiver/arbiter from Texas Instruments.
The TSB41LV03PFP has three IEEE 1394a-2000 fully-compliant cable ports.
The TSB41LV03PFP supports data rates of 100, 200, and 400 Megabits per second.
The TSB41LV03PFP operates on a single 3.3V supply.
The operating temperature range for the TSB41LV03PFP is 0°C to 70°C.
The TSB41LV03PFP is supplied in an 80-pin HTQFP (PFP) package.
